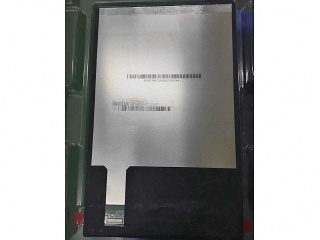

| PartZenbakia | ZJ070IA-17D |
| Marka | Innolux |
| Tamaina | 7.0 |
| Aplikazio | Pad & Tablet |
| Ebazpena | 800×1280 |
| Konposizioa | a-Si TFT-LCD , LCM |
| Distira | |
| CR | 800:1 |
| Koloreak | 16.7M |
| Atzeko argia | 10S2P |
| Interfazea | MIPI |
| panel marka | Innolux |
| panelaren tamaina | 7.0" |
| ebazpena | 800(RGB)×1280, WXGA, 215PPI |
| bistaratzeko eremua | 94.2(W)×150.72(H) mm |
| eskema tamaina | 103.5(W)×162.22(H) ×4.51(D) mm |
| distira | 500 cd/m² (Typ.) |
| ikuspegi angelua | 89/89/89/89 (Typ.)(CR≥10) |
| ikuspegirik onena | Symmetry |
| bistaratzeko koloreak | 16.7M |
| maiztasuna | 60Hz |
| panelaren pisua | 87.0g (Max.) |
| seinale interfazea | MIPI (4 data lanes) , 31 pins Connector |
| sarrerako tentsioa | 1.8/3.3V (Typ.)(VDD/VDDIO) |
| ingurunea | Operating Temp.: -10 ~ 60 °C ; Storage Temp.: -20 ~ 70 °C |
| panel eredua | ZJ070IA-17D |
| panel mota | a-Si TFT-LCD , LCM |
| pixel formatua | RGB Vertical Stripe |
| bezela irekidura | 97.35(W)×153.82(H) mm |
| azalera | Glare (Haze 0%), Hard coating (3H) |
| kontraste-erlazioa | 800:1 (Typ.) (TM) |
| bistaratzeko modua | AAS, Normally Black, Transmissive |
| erantzun denbora | 11/9 (Typ.)(Tr/Td) |
| lanpara mota | 10S2P WLED , 15K hours , Without Driver |
| pantaila taktila | Without |
| aplikazio | Pad & Tablet |
| AT070TN90 | Innolux | 7.0 | 800×480 |
| BP070WS1-400 | BOE | 7.0 | 1024×600 |
| CLAA070LC0CCW | CPT | 7.0 | 800×480 |
| HV070WS1-1E1 | HYDIS | 7.0 | 1024×600 |
| LA070WV1-TD03 | LG Display | 7.0 | 800×480 |
| LA070WV4-SD04 | LG Display | 7.0 | 800×480 |
| LD070WX5-SM01 | LG Display | 7.0 | 900×1440 |
| LQ070Y5DG12 | SHARP | 7.0 | 800×480 |
| PM070WU1 | E Ink | 7.0 | 800×480 |
| ZJ070NA-01P | Innolux | 7.0 | 1024×600 |
