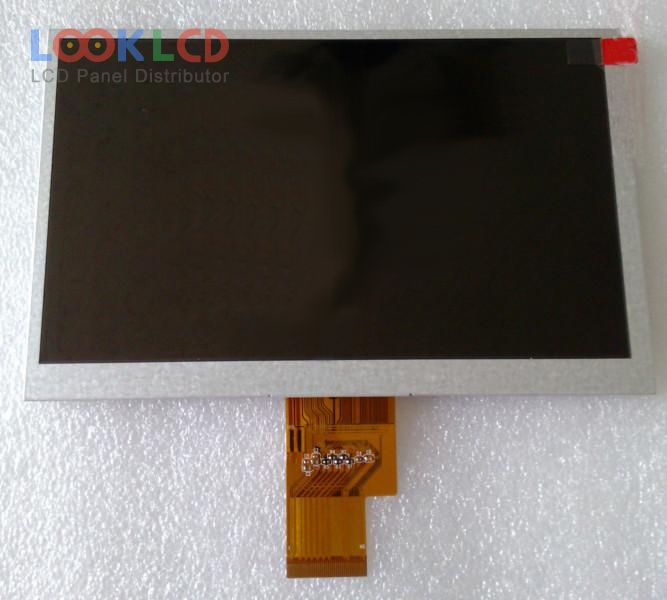

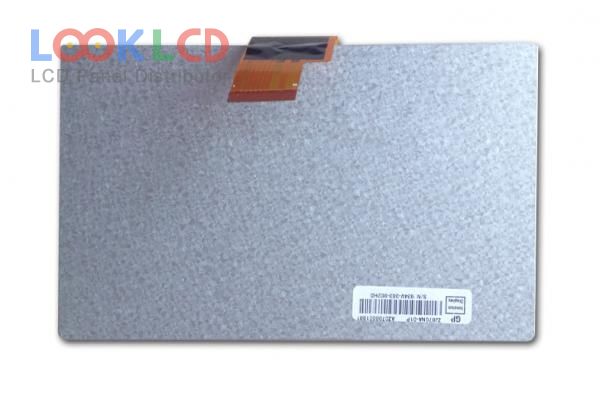

| PartZenbakia | ZJ070NA-01P |
| Marka | Innolux |
| Tamaina | 7.0 |
| Aplikazio | CNS |
| Ebazpena | 1024×600 |
| Konposizioa | LCM |
| Distira | 500 |
| CR | 700:1 |
| Koloreak | 262K/16.7M |
| Atzeko argia | WLED |
| Interfazea | LVDS |
| panel marka | CHIMEI INNOLUX |
| panel eredua | ZJ070NA-01P |
| panel mota | a-Si TFT-LCD , LCM |
| panelaren tamaina | 7.0 inch |
| ebazpena | 1024(RGB)×600 , WSVGA |
| bistaratzeko modua | TN, Normally White, Transmissive |
| eremu aktiboa | 153.6×90 mm |
| eskema | 165.75×105.39×5.1 mm |
| azalera | Glare (Haze 0%) |
| distira | 500 cd/m² (Typ.) |
| kontraste-erlazioa | 700:1 (Typ.) |
| bistaratzeko koloreak | 262K/16.7M (6-bit / 6-bit + Hi-FRC), CIE193170% |
| erantzun denbora | 10/15 (Typ.)(Tr/Td) |
| ikuspegi angelua | 75/75/70/75 (Typ.)(CR≥10)(L/R/U/D) |
| maiztasuna | 60Hz |
| lanpara mota | WLEDWithout Driver |
| seinale interfazea | LVDS (1 ch, 6/8-bit), 40 pins |
| sarrerako tentsioa | 3.3/11.0/20.0/-6.8V (Typ.)(DVDD/AVDD/VGH/VHL) |
| aplikazio | CNS |
