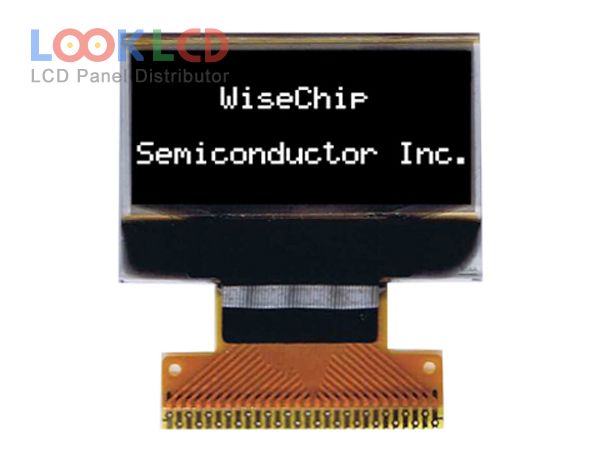

| PartZenbakia | UG-9639TSWEG03 |
| Marka | WiseChip |
| Tamaina | 0.82 |
| Aplikazio | IA |
| Ebazpena | 96×39 |
| Konposizioa | OLED |
| Distira | 100 |
| CR | 10000:1 |
| Koloreak | Mono(White) |
| Atzeko argia | self |
| Interfazea | CPU/SPI/I²C |
| panel marka | WiseChip |
| panel eredua | UG-9639TSWEG03 |
| panel mota | PM-OLED , OLED |
| panelaren tamaina | 0.82 inch |
| ebazpena | 96×39 |
| eremu aktiboa | 19.372×7.858 mm |
| eskema | 23.8×16.2×1.4 mm |
| azalera | |
| distira | 100 cd/m² (Typ.) |
| kontraste-erlazioa | 10000 : 1 (Min.) |
| bistaratzeko koloreak | Mono(White) (1-bit) |
| ikuspegi angelua | |
| gidariaren ic | COG Built-in SSD1306 |
| seinale interfazea | 8-bit 6800/8080 parallel, 4-wire SPI, I²C, 28 pins |
| sarrerako tentsioa | 2.8/7.25V (Typ.)(VDD/VCC) |
| rohs: | |
| aplikazio | IA |
| UG-9639TLBEG03 | WiseChip | 0.82 | 96×39 |
| UG-9639TSWEG03 | WiseChip | 0.82 | 96×39 |
| AA104XD12 | Mitsubishi | 10.4 | 1024×768 |
| AG-12864CYIQY-14H-A(R) | AMPIRE | 2.7 | 128×64 |
| B084SN01 V0 | AUO | 8.4 | 800×600 |
| EL320.240.36 HB SE | PLANAR | 5.7 | 320×240 |
| G321EV5R000 | SII | 4.7 | 320×240 |
| LQ104S1LG81 | SHARP | 10.4 | 800×600 |
| TM104QDSG09 | Tianma | 10.4 | 640×480 |
| TX14D22VM1BAA | KOE | 5.7 | 320×240 |
| TX26D14VM2EAA | KOE | 10.4 | 640×480 |
| UG-2864HLBEG01 | WiseChip | 0.96 | 128×64 |
