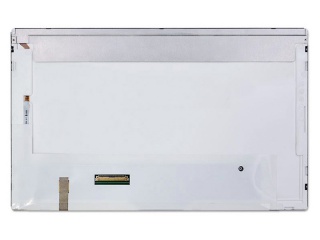

| PartZenbakia | TM101DDHG01-60 |
| Marka | TIANMA |
| Tamaina | 10.1 |
| Aplikazio | Industrial Automotiv |
| Ebazpena | 1024×600 |
| Konposizioa | a-Si TFT-LCD , LCM |
| Distira | |
| CR | 800:1 |
| Koloreak | 262K/16.7M |
| Atzeko argia | WLED |
| Interfazea | |
| panel marka | TIANMA |
| panelaren tamaina | 10.1" |
| ebazpena | 1024(RGB)×600, WSVGA, 117PPI |
| bistaratzeko eremua | 222.72(W)×125.28(H) mm |
| eskema tamaina | 235(W)×143(H) ×5.4(D) mm |
| distira | 450 cd/m² (Typ.) |
| ikuspegi angelua | 80/80/75/80 (Typ.)(CR≥10) |
| ikuspegirik onena | 12 o'clock |
| bistaratzeko koloreak | 262K/16.7M 47% NTSC |
| maiztasuna | 60Hz |
| pisua | 202g (Typ.) |
| panel eredua | TM101DDHG01-60 |
| panel mota | a-Si TFT-LCD , LCM |
| pixel formatua | RGB Vertical Stripe |
| bezela irekidura | 225.52(W)×128.10(H) mm |
| azalera | Antiglare, Hard coating (3H) |
| kontraste-erlazioa | 800:1 (Typ.) (TM) |
| bistaratzeko modua | TN, Normally White, Transmissive |
| erantzun denbora | 7/9 (Typ.)(Tr/Td) |
| lanpara mota | WLED , 30K hours , With LED Driver |
| pantaila taktila | Without |
| aplikazio | Industrial Automotive Display |
| A101AIE40L0 | Aptus | 10.1 | 1280×720 |
| AM-1280800N2TZQW-00H | AMPIRE | 10.1 | 1280×800 |
| CLAA101WB03 | CPT | 10.1 | 1366×768 |
| LTL101AL06-W02 | Samsung | 10.1 | 1280×800 |
| PJ101IA-01A | Innolux | 10.1 | 1280×800 |
| Q101IRE-LA1 | Innolux | 10.1 | 1280×800 |
| TM101DDHG01 | Tianma | 10.1 | 1024×600 |
| TM101DDHG03 | Tianma | 10.1 | 1024×600 |
| TV101WUM-NH0 | BOE | 10.1 | 1200×1920 |
| TV101WXM-NP0 | BOE | 10.1 | 1280×800 |
