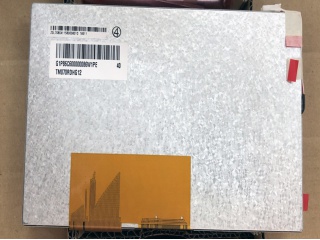

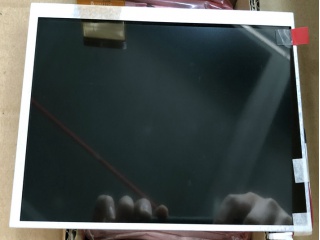

| PartZenbakia | TM070RDHG12 |
| Marka | TIANMA |
| Tamaina | 7.0 |
| Aplikazio | Portable DVD Player |
| Ebazpena | 800×480 |
| Konposizioa | a-Si TFT-LCD, LCM |
| Distira | |
| CR | 500:1 |
| Koloreak | 262K/16.7M |
| Atzeko argia | WLED |
| Interfazea | Parallel |
| marka | TIANMA |
| eredua | TM070RDHG12 |
| diagonalaren tamaina | 7.0 inch |
| mota | a-Si TFT-LCD, LCM |
| pixel formatua | 800(RGB)×480 [WVGA] 134PPI |
| konfigurazioa | RGB Vertical Stripe |
| eremu aktiboa | 154.08(H)×85.92(V) mm |
| eskema dim. | 164.9(H)×100(V) ×6(D) mm |
| bezela eremua | 157.08(H)×89.39(V) mm |
| tratamendua | Antiglare |
| luminantzia | 350 cd/m² (Typ.) |
| kontraste-erlazioa | 500:1 (Typ.) (TM) |
| ikusi norabidea | 12 o'clock |
| erantzun denbora | 20 (Typ.)(Tr+Td) |
| ikuspegi angelua | 70/70/60/70 (Typ.)(CR≥10) |
| funtzionamendu modua | TN, Normally White, Transmissive |
| euskarria kolorea | 262K/16.7M 50% NTSC |
| argi iturria | WLED [3S7P] , 20K hours , W/O Driver |
| pisua | 165g (Typ.) |
| entzat diseinatua | Portable DVD Player Digital Photo Frame |
| fotograma-tasa | 60Hz |
| ukipen-panela | Without |
| interfaze mota | Parallel RGB (1 ch, 6/8-bit) , 60 pins FPC |
| energia hornidura | 3.3/10.6/10.6/-7V (Typ.)(VCC/AVDD/VGH/VGL) |
| ingurunea | Operating Temperature: -20 ~ 70 °C ; Storage Temperature: -30 ~ 80 °C |
| TM070DDH02 | Tianma | 7.0 | 1024×600 |
| TM070DDH03 | Tianma | 7.0 | 1024×600 |
| TM070DDH07 | Tianma | 7.0 | 1024×600 |
| TM070DDH09 | Tianma | 7.0 | 1024×600 |
| TM070RBH10 | Tianma | 7.0 | 800×480 |
| TM070RDH01 | Tianma | 7.0 | 800×480 |
| TM070RDH10 | Tianma | 7.0 | 800×480 |
| TM070RDH11 | Tianma | 7.0 | 800×480 |
| TM070SDH03 | Tianma | 7.0 | 800×600 |
| TM070WA-22L06 | SANYO | 7.0 | 480×234 |
