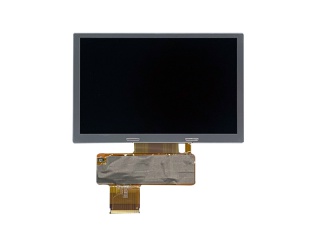

| PartZenbakia | TM050RDZG03-30 |
| Marka | TIANMA |
| Tamaina | 5.0 |
| Aplikazio | Industrial |
| Ebazpena | 800×480 |
| Konposizioa | LCM, a-Si TFT-LCD |
| Distira | |
| CR | 600:1 |
| Koloreak | 16.7M |
| Atzeko argia | 3S6P |
| Interfazea | |
| fabrikatzailea | TIANMA |
| ereduaren izena | TM050RDZG03-30 |
| pantailaren tamaina | 5.0 inch |
| pantaila mota | LCM, a-Si TFT-LCD |
| pixel-zenbakia | 800(RGB)×480 (WVGA) 188PPI |
| antolamendua | RGB Vertical Stripe |
| eremu aktiboa (mm) | 108 × 64.8 (H×V) |
| eskema (mm) | 120.7 × 77.8 × 5.9 (H×V×D) |
| bezela eremua (mm) | 111.1 × 67.9 (H×V) |
| tratamendua | Antiglare, Hard coating (3H) |
| luminantzia | 1000 cd/m² (Typ.) |
| kontraste-erlazioa | 600 : 1 (Typ.) (TM) |
| ikuspegi angelua | 70/70/50/70 (Typ.)(CR≥10) |
| erantzuna | 20/30 (Typ./Max.)(Tr+Td) ms |
| ikuspegi ona | 12 o'clock |
| lan egiteko modua | TN, Normally White, Transmissive |
| kolore-sakonera | 16.7M 50% NTSC |
| atzeko argia | 3S6P WLED , 50K hours |
| masa | TBD |
| erabiltzen | Industrial |
| freskatze tasa | 60Hz |
| pantaila taktila | Without |
| Storage Temp.: -40 ~ 90 °C Operating Temp.: -30 ~ 85 °C |
