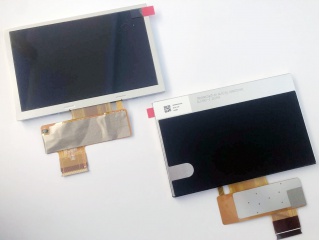

| PartZenbakia | TM050RDZG03-00 |
| Marka | TIANMA |
| Tamaina | 5.0 |
| Aplikazio | Industrial |
| Ebazpena | 800×480 |
| Konposizioa | a-Si TFT-LCD , LCM |
| Distira | |
| CR | 750:1 |
| Koloreak | 16.7M |
| Atzeko argia | 3S6P |
| Interfazea | Parallel |
| panel marka | TIANMA |
| panelaren tamaina | 5.0" |
| ebazpena | 800(RGB)×480, WVGA, 188PPI |
| bistaratzeko eremua | 108(W)×64.8(H) mm |
| eskema tamaina | 120.7(W)×77.8(H) ×5.9(D) mm |
| distira | 1000 cd/m² (Typ.) |
| ikuspegi angelua | 80/80/70/80 (Typ.)(CR≥10) |
| ikuspegirik onena | 12 o'clock |
| bistaratzeko koloreak | 16.7M 50% NTSC |
| maiztasuna | 60Hz |
| panelaren pisua | TBD |
| seinale interfazea | Parallel RGB (1 ch, 8-bit) , 40 pins FPC |
| sarrerako tentsioa | 3.3V (Typ.) |
| ingurunea | Operating Temp.: -30 ~ 85 °C ; Storage Temp.: -40 ~ 90 °C |
| panel eredua | TM050RDZG03-00 |
| panel mota | a-Si TFT-LCD , LCM |
| pixel formatua | RGB Vertical Stripe |
| bezela irekidura | 111.1(W)×67.9(H) mm |
| azalera | Antiglare |
| kontraste-erlazioa | 750:1 (Typ.) (TM) |
| bistaratzeko modua | TN, Normally White, Transmissive |
| erantzun denbora | 20/30 (Typ./Max.)(Tr+Td) |
| lanpara mota | 3S6P WLED , 50K hours |
| pantaila taktila | Without |
| aplikazio | Industrial |
| A050FW03 V2 | AUO | 5.0 | 480×272 |
| AT050TN34 V.1 | Innolux | 5.0 | 480×272 |
| G050VTN01.1 | AUO | 5.0 | 800×480 |
| LA050WQ1-TD01 | LG Display | 5.0 | 480×272 |
| LQ050T5DG01 | SHARP | 5.0 | 400×240 |
| PA050XS7 | E Ink | 5.0 | 320×234 |
| PW050XS3 | E Ink | 5.0 | 320×220 |
| TFD50W52MS3 | TOSHIBA | 5.0 | |
| TM050RDH03 | Tianma | 5.0 | 800×480 |
| ZJ050NA-08C | Innolux | 5.0 | 640×480 |
