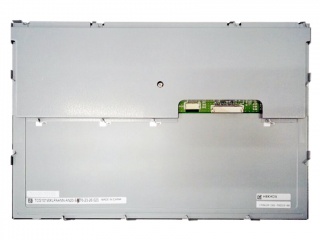

| PartZenbakia | TCG101WXLPAANN-AN20-SA |
| Marka | Kyocera |
| Tamaina | 10.1 |
| Aplikazio | Industrial |
| Ebazpena | 1280×800 |
| Konposizioa | a-Si TFT-LCD, LCM |
| Distira | |
| CR | 800:1 |
| Koloreak | 16.2M |
| Atzeko argia | WLED |
| Interfazea | LVDS |
| panel marka | Kyocera |
| panel eredua | TCG101WXLPAANN-AN20-SA |
| panelaren tamaina | 10.1" |
| panel mota | a-Si TFT-LCD, LCM |
| ebazpena | 1280(RGB)×800, WXGA, 149PPI |
| pixel formatua | RGB Vertical Stripe |
| bistaratzeko eremua | 216.96(W)×135.6(H) mm |
| bezela irekidura | 219.96(W)×138.6(H) mm |
| eskema tamaina | 236(W)×156.8(H) ×9.9(D) mm |
| azalera | Antiglare |
| distira | 500 cd/m² (Typ.) |
| kontraste-erlazioa | 800:1 (Typ.) (TM) |
| ikuspegi angelua | 80/80/80/80 (Typ.)(CR≥10) |
| bistaratzeko modua | TN, Normally White, Transmissive |
| ikuspegirik onena | - |
| erantzun denbora | 8/22 (Typ.)(Tr/Td) |
| bistaratzeko koloreak | 16.2M 52% NTSC |
| lanpara mota | WLED , 50K hours , With LED Driver |
| maiztasuna | 60Hz |
| pantaila taktila | Without |
| panelaren pisua | 500g (Typ.) |
| aplikazio | Industrial |
| seinale interfazea | LVDS (1 ch, 8-bit) , 20 pins Connector |
| sarrerako tentsioa | 3.3V (Typ.) |
| ingurunea | Operating Temp.: -20 ~ 70 °C ; Storage Temp.: -30 ~ 80 °C |
