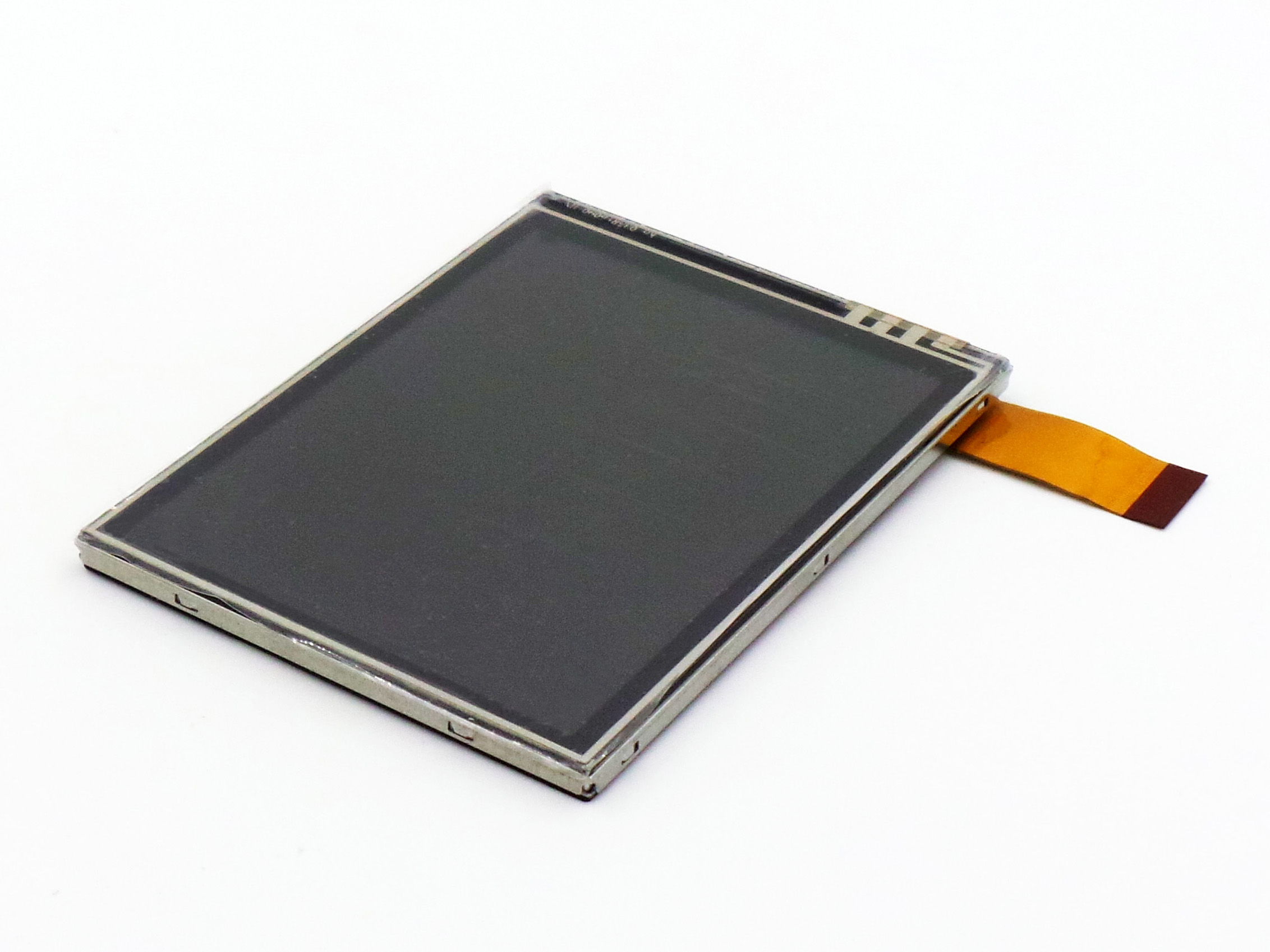

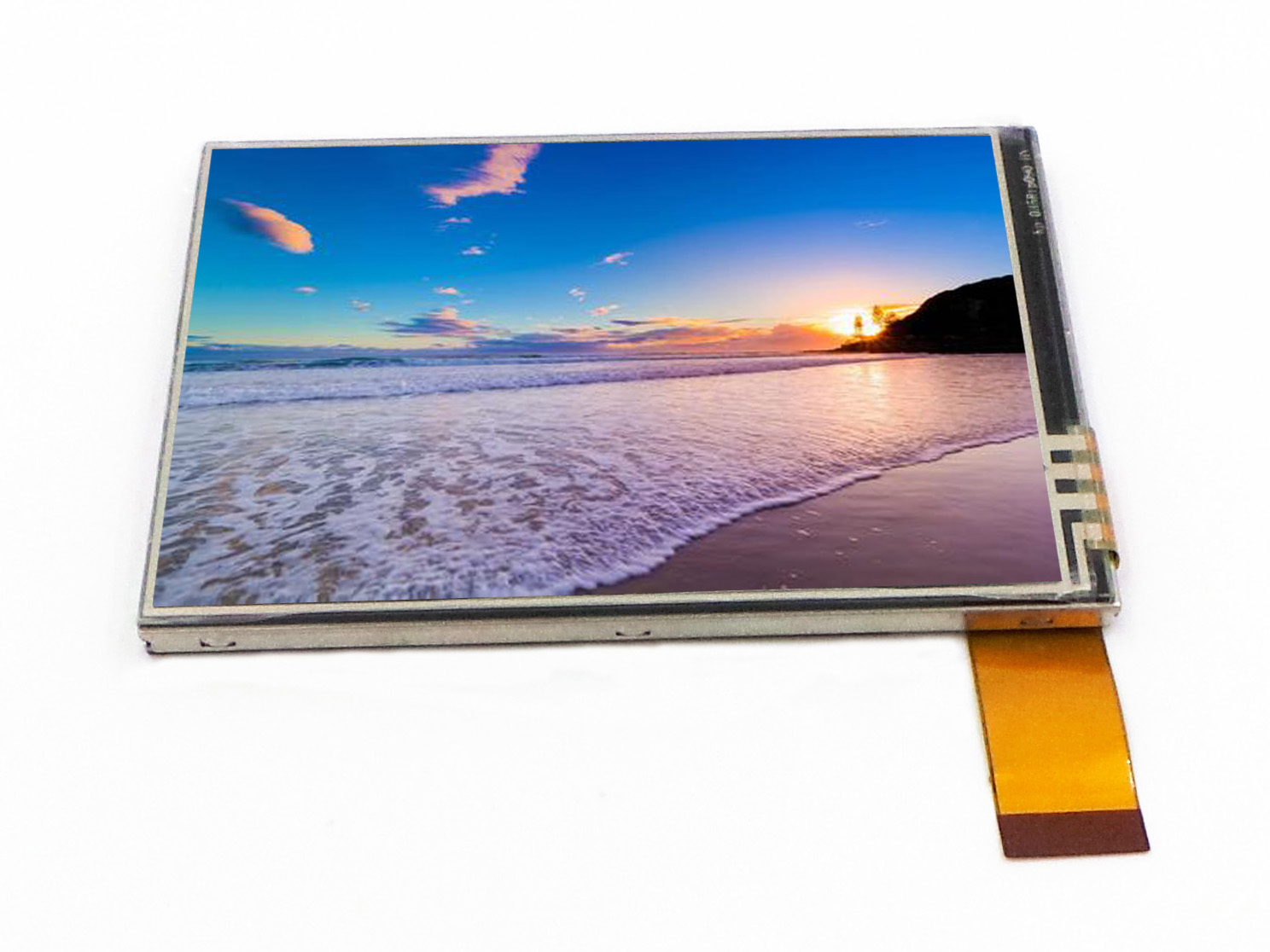

| PartZenbakia | S035V04-T |
| Marka | CDTECH |
| Tamaina | 3.5 |
| Aplikazio | Industrial Handheld |
| Ebazpena | 480×640 |
| Konposizioa | a-Si TFT-LCD, LCM |
| Distira | |
| CR | 500:1 |
| Koloreak | 262K |
| Atzeko argia | 8S1P |
| Interfazea | Parallel |
| panel marka | CDTECH |
| panel eredua | S035V04-T |
| panelaren tamaina | 3.5" |
| panel mota | a-Si TFT-LCD, LCM |
| ebazpena | 480(RGB)×640, VGA, 228PPI |
| pixel formatua | RGB Vertical Stripe |
| bistaratzeko eremua | 53.28(W)×71.04(H) mm |
| bezela irekidura | - |
| eskema tamaina | 64(W)×85(H) ×5(D) mm |
| azalera | - |
| distira | 650 cd/m² (Typ.) |
| kontraste-erlazioa | 500:1 (Typ.) (TM) |
| ikuspegi angelua | 65/65/55/65 (Typ.)(CR≥10) |
| bistaratzeko modua | TN, Normally White, Transmissive |
| ikuspegirik onena | 9 o'clock |
| erantzun denbora | 30 (Typ.)(Tr+Td) |
| bistaratzeko koloreak | 262K 50% NTSC |
| lanpara mota | 8S1P WLED , 25K hours , Without Driver |
| maiztasuna | 60Hz |
| pantaila taktila | 4-wire Resistive Touch |
| panelaren pisua | TBD |
| aplikazio | Industrial Handheld & PDA |
| seinale interfazea | Parallel RGB (1 ch, 6-bit) , 39 pins FPC |
| sarrerako tentsioa | 3.3/3.3V (Typ.)(VCC/IOVCC) |
| ingurunea | Operating Temp.: -20 ~ 70 °C ; Storage Temp.: -30 ~ 80 °C |
