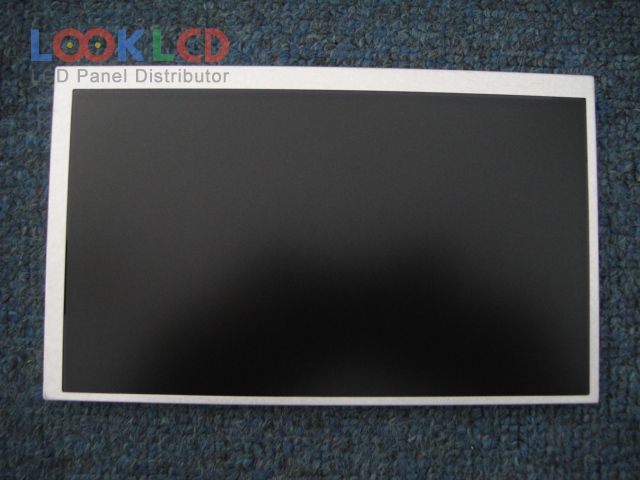

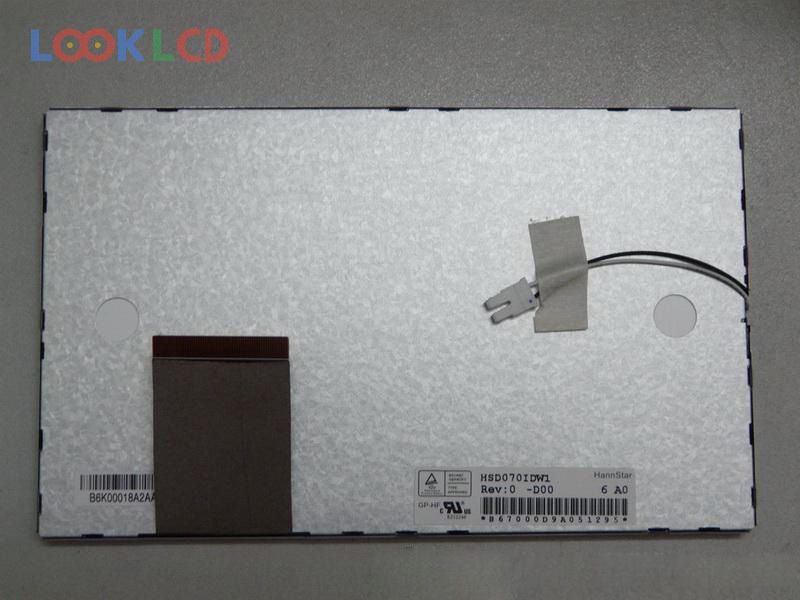

| PartZenbakia | HSD070IDW1-D00 |
| Marka | HannStar |
| Tamaina | 7.0 |
| Aplikazio | CNS |
| Ebazpena | 800×480 |
| Konposizioa | LCM |
| Distira | 350 |
| CR | 500:1 |
| Koloreak | 262K/16.2M |
| Atzeko argia | WLED |
| Interfazea | TTL |
| panel marka | HannStar |
| panel eredua | HSD070IDW1-D00 |
| panel mota | a-Si TFT-LCD , LCM |
| panelaren tamaina | 7.0 inch |
| ebazpena | 800(RGB)×480 , WVGA |
| bistaratzeko modua | TN, Normally White, Transmissive |
| eremu aktiboa | 153.6×86.64 mm |
| eskema | 164.9×100×6 mm |
| azalera | Antiglare, Hard coating (3H) |
| distira | 350 cd/m² (Typ.) |
| kontraste-erlazioa | 500:1 (Typ.) |
| bistaratzeko koloreak | 262K/16.2M (6-bit / 6-bit + FRC), CIE193150% |
| erantzun denbora | 5/20 (Typ.)(Tr/Td) |
| ikuspegi angelua | 75/75/60/70 (Typ.)(CR≥10)(L/R/U/D) |
| lanpara mota | 3S7PWLEDWithout Driver |
| seinale interfazea | TTL (1 ch, 6/8-bit), 60 pins |
| sarrerako tentsioa | 3.0/10/15/-7V (Typ.)(VCC/AVDD/VGH/VGL) |
| aplikazio | CNS |
| HSD070I651-C02 | HannStar | 7.0 | 480×234 |
| HSD070I651-F20 | HannStar | 7.0 | 480×234 |
| HSD070IDW1-A00 | HannStar | 7.0 | 800×480 |
| HSD070IDW1-A20 | HannStar | 7.0 | 800×480 |
| HSD070IDW1-A21 | HannStar | 7.0 | 800×480 |
| HSD070IDW1-A30 | HannStar | 7.0 | 800×480 |
| HSD070IDW1-D00 | HannStar | 7.0 | 800×480 |
| HSD070IDW1-E11 | HannStar | 7.0 | 800×480 |
| HSD070IFW1-A00 | HannStar | 7.0 | 1024×600 |
| HSD070ISN1-D00 | HannStar | 7.0 | 800×600 |
| A070FW03 V1 | AUO | 7.0 | 480×234 |
| A070VTN03.0 | AUO | 7.0 | 800×480 |
| C070VTN02.0 | AUO | 7.0 | 800×480 |
| CLAA061LA0DCW | CPT | 6.1 | 800×480 |
| HSD040I3N1-B00 | HannStar | 4.0 | 320×240 |
| LQ049B5DG04 | SHARP | 4.9 | 320×96 |
| LQ070Y5DG12 | SHARP | 7.0 | 800×480 |
| LQ070Y5DG20 | SHARP | 7.0 | 800×480 |
| LQ7BW566AH | SHARP | 7.0 | 480×234 |
| PA080XS2 | E Ink | 7.9 | 480×468 |
