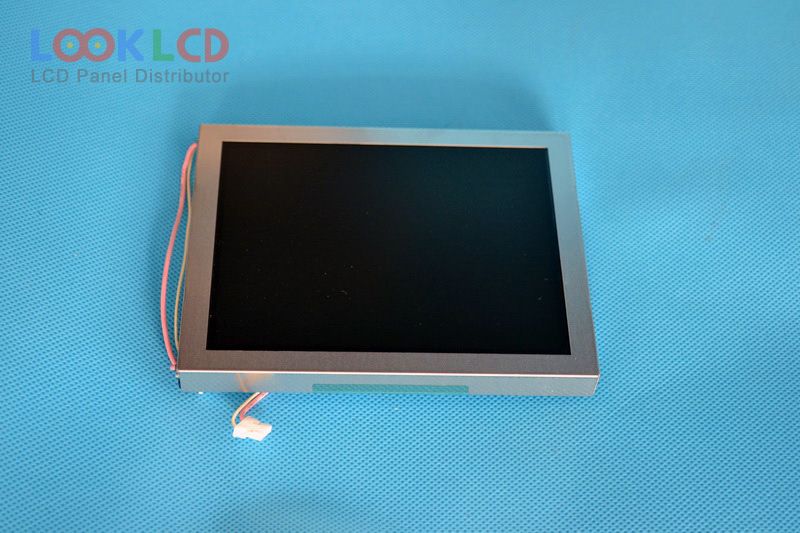

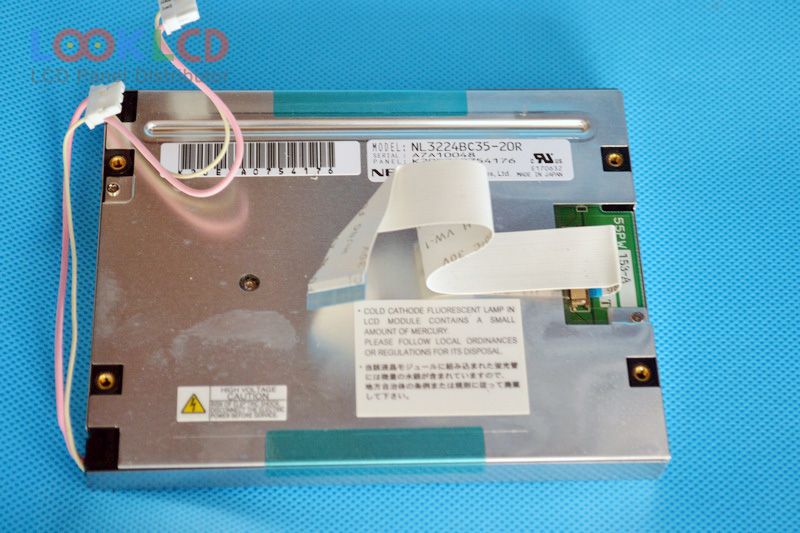

| PartZenbakia | NL3224BC35-20R |
| Marka | NLT |
| Tamaina | 5.5 |
| Aplikazio | IA |
| Ebazpena | 320×240 |
| Konposizioa | LCM |
| Distira | |
| CR | |
| Koloreak | 262K |
| Atzeko argia | CCFL |
| Interfazea | TTL |
| panel marka | NEC |
| panel eredua | NL3224BC35-20R |
| panel mota | a-Si TFT-LCD , LCM |
| panelaren tamaina | 5.5 inch |
| ebazpena | 320(RGB)×240 , QVGA |
| bistaratzeko modua | TN, Normally White, Transmissive |
| eremu aktiboa | 111.36×83.52 mm |
| eskema | 134×104.5 mm |
| azalera | |
| distira | |
| kontraste-erlazioa | |
| bistaratzeko koloreak | 262K (6-bit) |
| erantzun denbora | |
| ikuspegi angelua | |
| maiztasuna | 60Hz |
| lanpara mota | 2 pcsCCFLWithout Driver |
| seinale interfazea | CMOS (1 ch, 6-bit) |
| rohs: | |
| aplikazio | IA |
