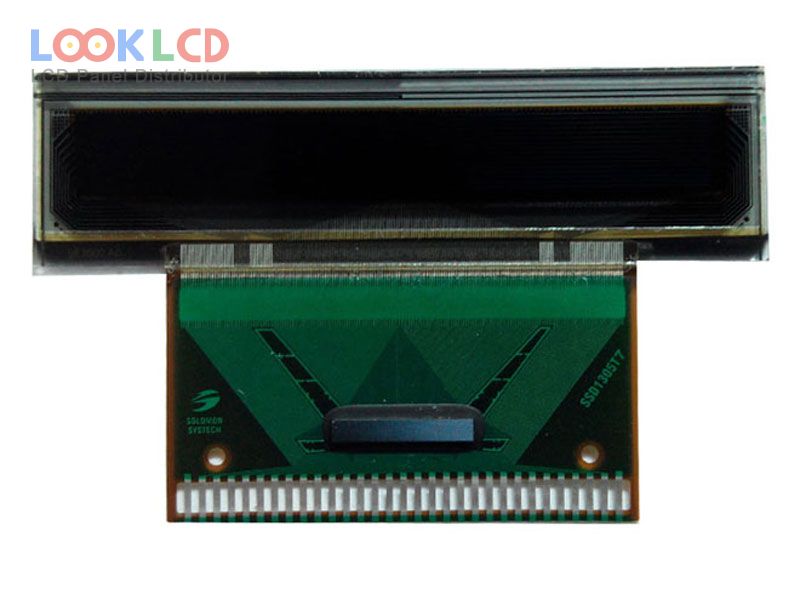

OEL9M0078-G-E

OEL9M0078-G-E
OEL9M0078-G-E thumb
Marka
Other
Tamaina
1.45
Aplikazio
IA
Ebazpena
132×16
Konposizioa
OLED
Distira
CR
10000:1
Koloreak
Mono(Green)
Atzeko argia
self
Interfazea
CPU/SPI/I²C
In Stock
6483
Zehaztapenak

PartZenbakia OEL9M0078-G-E
MarkaOther
Tamaina1.45
AplikazioIA
Ebazpena132×16
KonposizioaOLED
Distira
CR10000:1
KoloreakMono(Green)
Atzeko argiaself
InterfazeaCPU/SPI/I²C
panel markaTRULY
panel ereduaOEL9M0078-G-E
panel mota PM-OLED , OLED
panelaren tamaina1.45 inch
ebazpena132×16
eremu aktiboa36.412×4.62 mm
eskema43.06×11.75×1.6 mm
azalera
distira
kontraste-erlazioa10000 : 1 (Min.)
bistaratzeko koloreakMono(Green) (1-bit)
ikuspegi angelua80/80/80/80 (Min.)(CR≥10)(L/R/U/D)
gidariaren icTAB Built-in SSD1305T7R1
seinale interfazeaCPU/SPI/I²C, 31 pins
aplikazioIA
