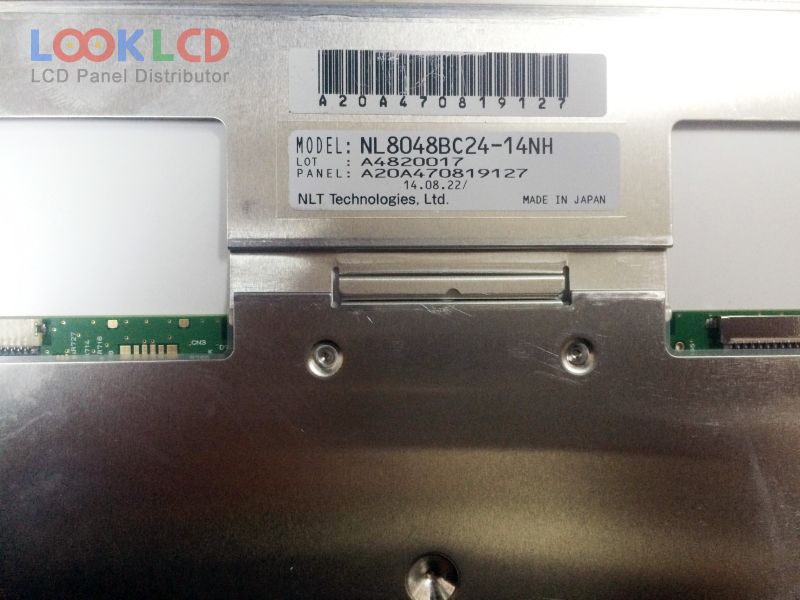

| PartZenbakia | NL8048BC24-14NH |
| Marka | NLT |
| Tamaina | 9.0 |
| Aplikazio | IA |
| Ebazpena | 800×480 |
| Konposizioa | LCM |
| Distira | |
| CR | |
| Koloreak | 262K/16.7M |
| Atzeko argia | WLED |
| Interfazea | LVDS |
| panel marka | NEC |
| panel eredua | NL8048BC24-14NH |
| panel mota | a-Si TFT-LCD , LCM |
| panelaren tamaina | 9.0 inch |
| ebazpena | 800(RGB)×480 , WVGA |
| bistaratzeko modua | UA-SFT, Normally Black, Transmissive |
| eremu aktiboa | 196.8×118.08 mm |
| azalera | Anti Fingerprint + Antiglare |
| distira | |
| kontraste-erlazioa | |
| bistaratzeko koloreak | 262K/16.7M (6-bit / 6-bit + Hi-FRC) |
| erantzun denbora | |
| ikuspegi angelua | |
| maiztasuna | 60Hz |
| lanpara mota | WLED |
| seinale interfazea | LVDS (1 ch, 6/8-bit) |
| sarrerako tentsioa | 3.3V (Typ.) |
| aplikazio | IA |
