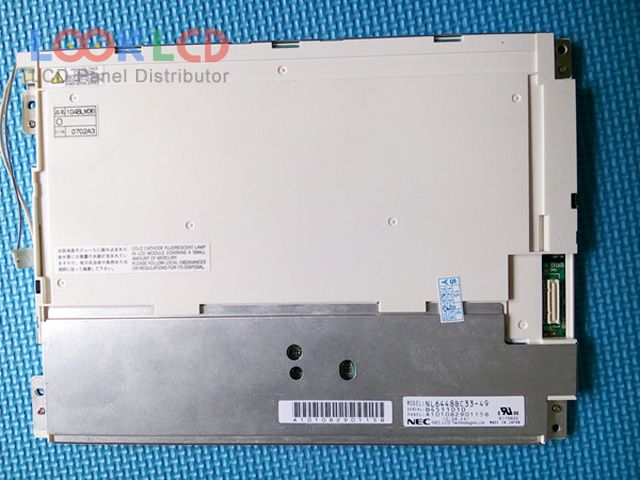

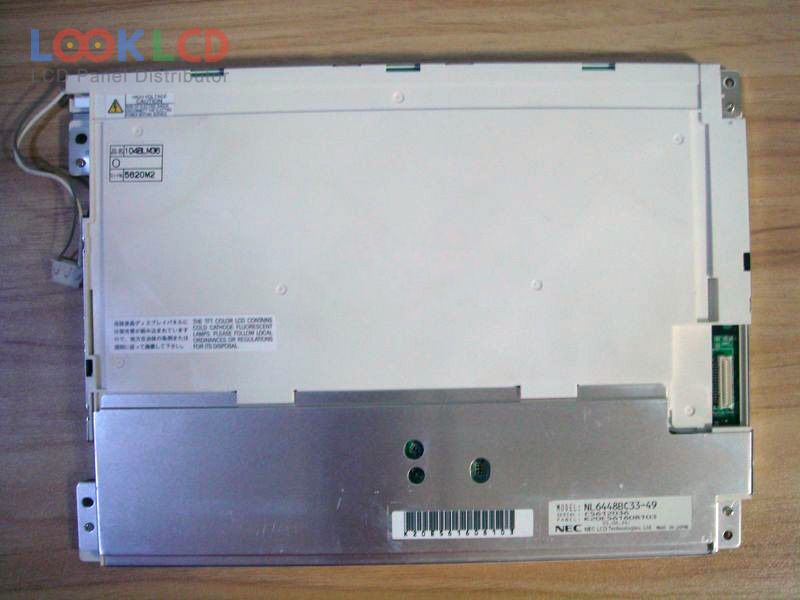

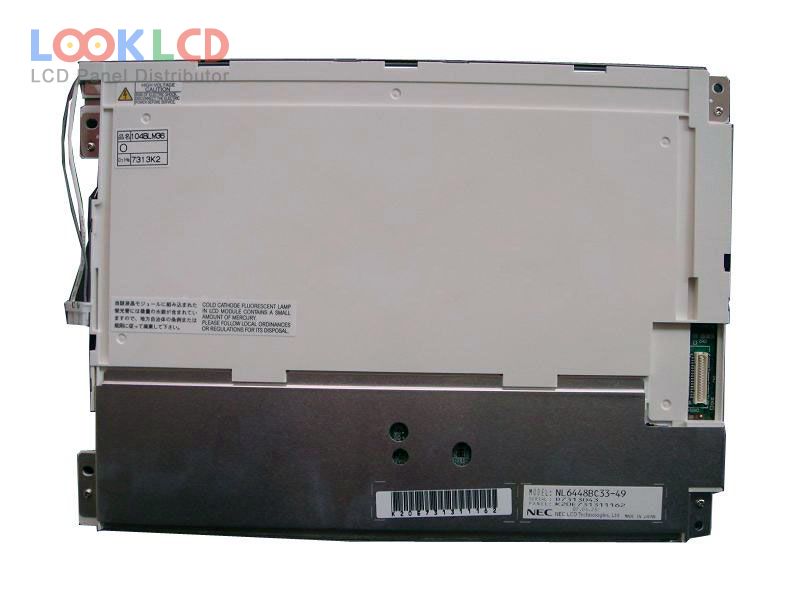

| PartZenbakia | NL6448BC33-49 |
| Marka | NLT |
| Tamaina | 10.4 |
| Aplikazio | IA |
| Ebazpena | 640×480 |
| Konposizioa | LCM |
| Distira | 200 |
| CR | 300:1 |
| Koloreak | 262K |
| Atzeko argia | CCFL |
| Interfazea | TTL |
| panel marka | NEC |
| panel eredua | NL6448BC33-49 |
| panel mota | a-Si TFT-LCD , LCM |
| panelaren tamaina | 10.4 inch |
| ebazpena | 640(RGB)×480 , VGA |
| bistaratzeko modua | TN, Normally White, Transmissive |
| eremu aktiboa | 211.2×158.4 mm |
| eskema | 243×185.1×11 mm |
| azalera | Antiglare, Hard coating (2H) |
| distira | 200 cd/m² (Typ.) |
| kontraste-erlazioa | 300:1 (Typ.) |
| bistaratzeko koloreak | 262K (6-bit), CIE193145% |
| erantzun denbora | 10/40 (Typ.)(Tr/Td) |
| ikuspegi angelua | 70/70/40/70 (Typ.)(CR≥10)(L/R/U/D) |
| maiztasuna | 60Hz |
| lanpara mota | 1 pcsCCFLWithout Driver |
| seinale interfazea | Parallel RGB (1 ch, 6-bit), 31 pins |
| sarrerako tentsioa | 3.3/5.0V (Typ.) |
| aplikazio | IA |
| NL6448AC33-18A | NLT | 10.4 | 640×480 |
| NL6448AC33-27 | NLT | 10.4 | 640×480 |
| NL6448BC20-08E | NLT | 6.5 | 640×480 |
| NL6448BC20-20 | NLT | 6.5 | 640×480 |
| NL6448BC26-09 | NLT | 8.4 | 640×480 |
| NL6448BC26-17 | NLT | 8.4 | 640×480 |
| NL6448BC33-49 | NLT | 10.4 | 640×480 |
| NL6448BC33-53 | NLT | 10.4 | 640×480 |
| NL6448BC33-70D | NLT | 10.4 | 640×480 |
| NL6448BC33-74 | NLT | 10.4 | 640×480 |
| AM-800600M3TNQW-01H-F | AMPIRE | 8.4 | 800×600 |
| DLC1010DZG-T-8 | Other | 10.1 | 1280×800 |
| EL160.80.50 IN | Lumineq | 3.5 | 160×80 |
| HSD190MEN4-A03 | HannStar | 19.0 | 1280×1024 |
| LM085YB1T01 | SHARP | 8.5 | 800×480 |
| LQ104V1DG81 | SHARP | 10.4 | 640×480 |
| LQ10D41 | SHARP | 10.4 | 640×480 |
| LT084AC27900 | TOSHIBA | 8.4 | 800×600 |
| M190EG01 V0 | AUO | 19.0 | 1280×1024 |
| NL10276BC30-18 | NLT | 15.0 | 1024×768 |
