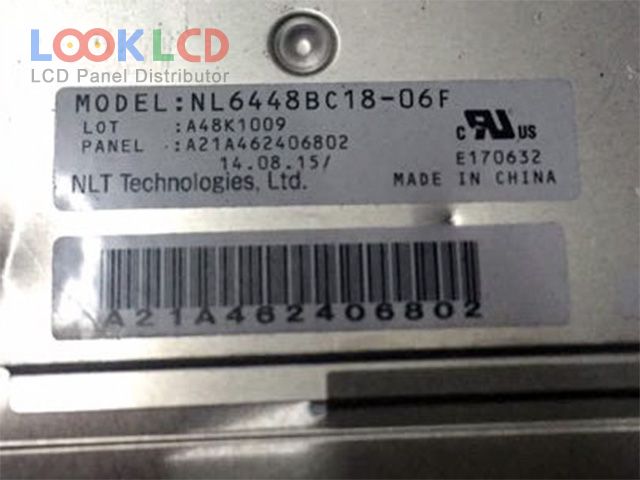

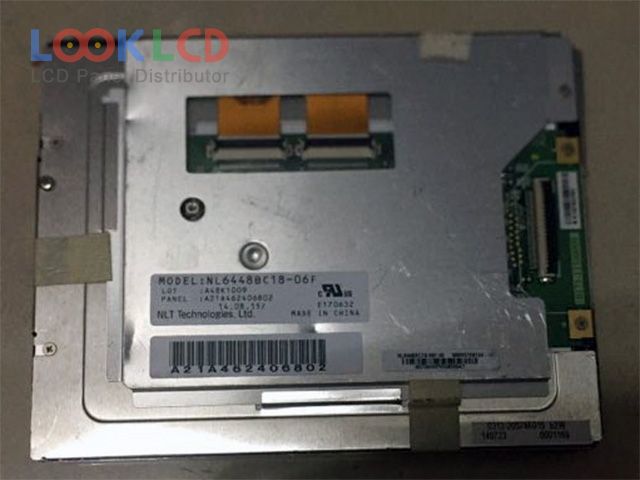

| PartZenbakia | NL6448BC18-06F |
| Marka | NLT |
| Tamaina | 5.7 |
| Aplikazio | IA |
| Ebazpena | 640×480 |
| Konposizioa | LCM |
| Distira | 800 |
| CR | 850:1 |
| Koloreak | 262K |
| Atzeko argia | WLED |
| Interfazea | TTL |
| panel marka | NEC |
| panel eredua | NL6448BC18-06F |
| panel mota | a-Si TFT-LCD , LCM |
| panelaren tamaina | 5.7 inch |
| ebazpena | 640(RGB)×480 , VGA |
| bistaratzeko modua | TN, Normally White, Transmissive |
| eremu aktiboa | 116.16×87.12 mm |
| eskema | 135×104.6×11 mm |
| azalera | Clear, Hard coating (3H) |
| distira | 800 cd/m² (Typ.) |
| kontraste-erlazioa | 850:1 (Typ.) |
| bistaratzeko koloreak | 262K (6-bit), CIE193160% |
| erantzun denbora | 3/15 (Typ.)(Tr/Td) |
| ikuspegi angelua | 80/80/80/80 (Typ.)(CR≥10)(L/R/U/D) |
| maiztasuna | 60Hz |
| lanpara mota | 9S2P×2CNWLEDWithout Driver |
| seinale interfazea | Parallel RGB (1 ch, 6-bit), 40 pins |
| sarrerako tentsioa | 3.3V (Typ.) |
| aplikazio | IA |
