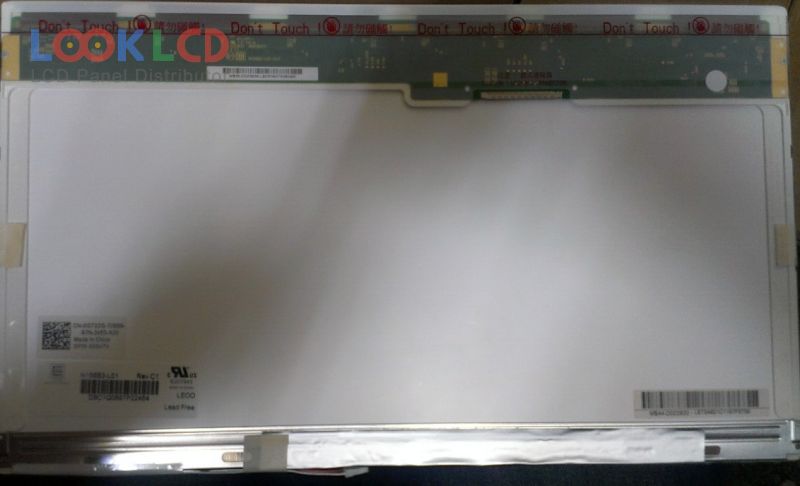

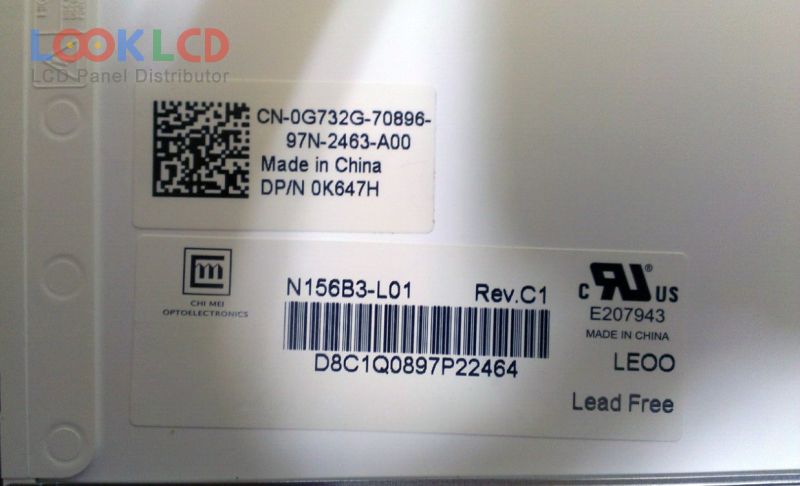

| PartZenbakia | N156B3-L01 |
| Marka | Innolux |
| Tamaina | 15.6 |
| Aplikazio | NBPC |
| Ebazpena | 1366×768 |
| Konposizioa | LCM |
| Distira | 220 |
| CR | 400:1 |
| Koloreak | 262K |
| Atzeko argia | CCFL |
| Interfazea | LVDS |
| panel marka | CMO |
| panel eredua | N156B3-L01 |
| panel mota | a-Si TFT-LCD , LCM |
| panelaren tamaina | 15.6 inch |
| ebazpena | 1366(RGB)×768 , WXGA |
| bistaratzeko modua | TN, Normally White, Transmissive |
| eremu aktiboa | 344.232×193.536 mm |
| eskema | 359.3×209.5×6.2 mm |
| forma estiloa | Wedge (PCBA Bent, Depth ≥5.2mm) |
| azalera | Antiglare, Hard coating (3H) |
| distira | 220 cd/m² (Typ.) |
| kontraste-erlazioa | 400:1 (Typ.) |
| bistaratzeko koloreak | 262K (6-bit), CIE193160% |
| erantzun denbora | 3/7 (Typ.)(Tr/Td) |
| ikuspegi angelua | 45/45/20/45 (Typ.)(CR≥10)(L/R/U/D) |
| maiztasuna | 60Hz |
| lanpara mota | 1 pcsCCFLWithout Driver |
| seinale interfazea | LVDS (1 ch, 6-bit), 30 pins |
| sarrerako tentsioa | 3.3V (Typ.) |
| aplikazio | NBPC |
