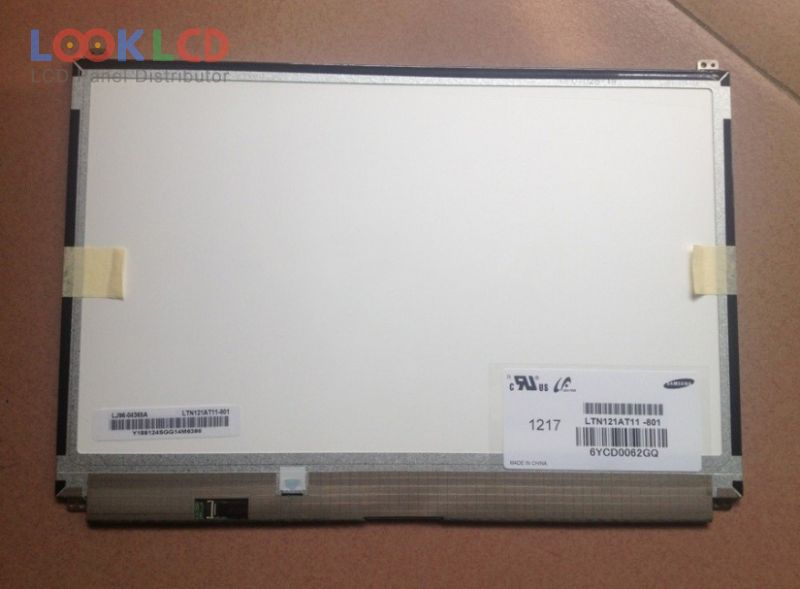

| PartZenbakia | LTN121AT11-801 |
| Marka | Samsung |
| Tamaina | 12.1 |
| Aplikazio | NBPC |
| Ebazpena | 1280×800 |
| Konposizioa | LCM |
| Distira | 300 |
| CR | 300:1 |
| Koloreak | 262K |
| Atzeko argia | WLED |
| Interfazea | LVDS |
| panel marka | SAMSUNG |
| panel eredua | LTN121AT11-801 |
| panel mota | a-Si TFT-LCD , LCM |
| panelaren tamaina | 12.1 inch |
| ebazpena | 1280(RGB)×800 , WXGA |
| bistaratzeko modua | TN, Normally White, Transmissive |
| eremu aktiboa | 261.12×163.2 mm |
| eskema | 274.5×177.5×3.6 mm |
| azalera | Antiglare (Haze 25%), Hard coating (3H) |
| distira | 300 cd/m² (Typ.) |
| kontraste-erlazioa | 300:1 (Min.) |
| bistaratzeko koloreak | 262K (6-bit), CIE193145% |
| erantzun denbora | 16 (Typ.)(Tr+Td) |
| ikuspegi angelua | 45/45/20/30 (Min.)(CR≥10)(L/R/U/D) |
| maiztasuna | 60Hz |
| lanpara mota | 6S4PWLEDEmbedded (LED Driver) |
| seinale interfazea | LVDS (1 ch, 6-bit), 40 pins |
| sarrerako tentsioa | 3.3V (Typ.) |
| aplikazio | NBPC |
