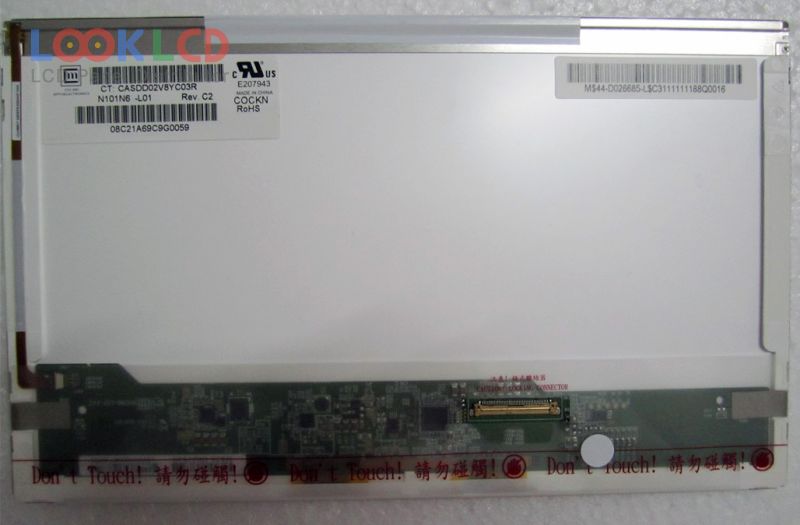

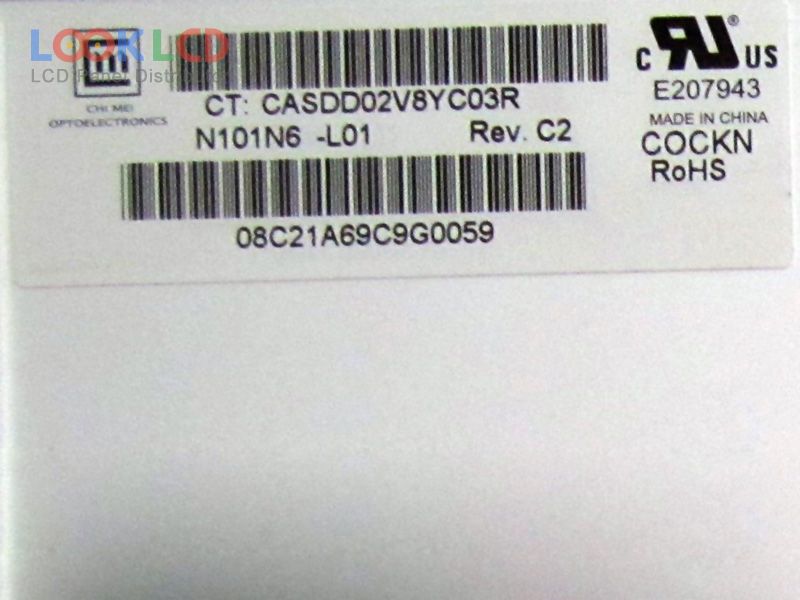

| PartZenbakia | N101N6-L01 |
| Marka | Innolux |
| Tamaina | 10.1 |
| Aplikazio | NOPC |
| Ebazpena | 1024×576 |
| Konposizioa | LCM |
| Distira | 200 |
| CR | 500:1 |
| Koloreak | 262K |
| Atzeko argia | WLED |
| Interfazea | LVDS |
| panel marka | CMO |
| panel eredua | N101N6-L01 5 Compatible model |
| panel mota | a-Si TFT-LCD , LCM |
| panelaren tamaina | 10.1 inch |
| ebazpena | 1024(RGB)×576 , WSVGA |
| bistaratzeko modua | TN, Normally White, Transmissive |
| eremu aktiboa | 222.72×125.28 mm |
| eskema | 235×143×5.2 mm |
| forma estiloa | Wedge (PCBA Bent, Depth ≥5.2mm) |
| azalera | Antiglare, Hard coating (3H) |
| distira | 200 cd/m² (Typ.) |
| kontraste-erlazioa | 500:1 (Typ.) |
| bistaratzeko koloreak | 262K (6-bit) |
| erantzun denbora | 3/7 (Typ.)(Tr/Td) |
| ikuspegi angelua | 45/45/20/45 (Typ.)(CR≥10)(L/R/U/D) |
| maiztasuna | 60Hz |
| lanpara mota | 9S3PWLEDEmbedded (LED Driver) |
| seinale interfazea | LVDS (1 ch, 6-bit), 40 pins |
| sarrerako tentsioa | 3.3V (Typ.) |
| aplikazio | NOPC |
| B101AW02 V0 | AUO | 10.1 | 1024×600 |
| B101AW06 V1 HW0A | AUO | 10.1 | 1024×600 |
| CLAA101WB03 | CPT | 10.1 | 1366×768 |
| HSD100IFW1-A00 | HannStar | 10.1 | 1024×600 |
| LP101WH4-SLA3 | LG Display | 10.1 | 1366×768 |
| LP101WH4-SLA6 | LG Display | 10.1 | 1366×768 |
| LP101WS1-TLB3 | LG Display | 10.1 | 1024×576 |
| N101N6-L01 | Innolux | 10.1 | 1024×576 |
| N101N6-L02 | Innolux | 10.1 | 1024×576 |
| TM101JDHP01 | Tianma | 10.1 | 1280×800 |
| A089SW01 V1 | AUO | 8.9 | 1024×600 |
| B101AW06 V1 HW1A | AUO | 10.1 | 1024×600 |
| B116XTN02.3 HW0A | AUO | 11.6 | 1366×768 |
| B116XW05 V0 | AUO | 11.6 | 1366×768 |
| BA101WS1-100 | BOE | 10.1 | 1024×600 |
| HT089WX1-100 | HYDIS | 8.9 | 1280×768 |
| LP101WS1-TLB2 | LG Display | 10.1 | 1024×576 |
| M101NWT2 R2 | IVO | 10.1 | 1024×600 |
| N101L6-L0D | Innolux | 10.1 | 1024×600 |
| N116BGE-L42 | Innolux | 11.6 | 1366×768 |
