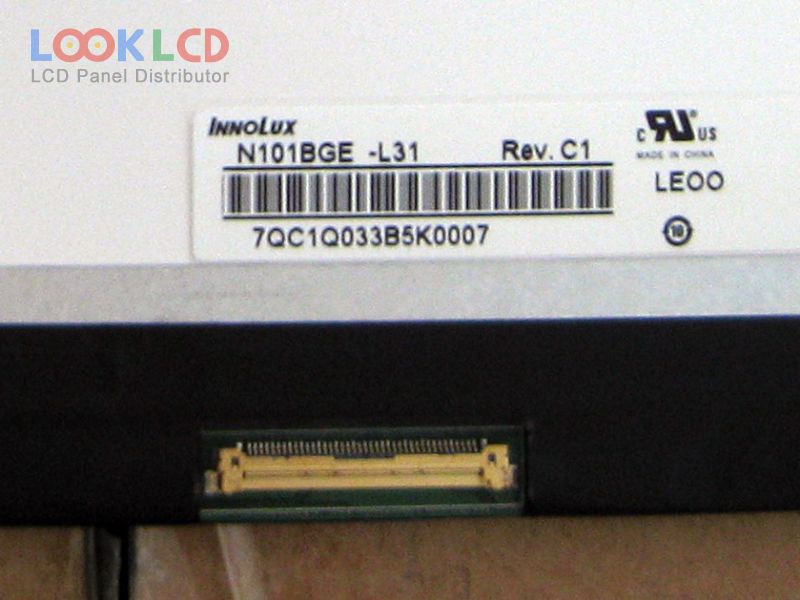

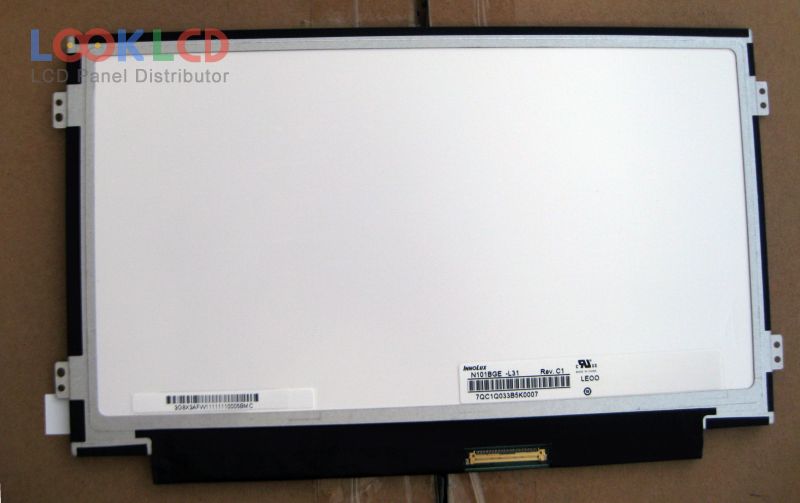

| PartZenbakia | N101BGE-L31 |
| Marka | Innolux |
| Tamaina | 10.1 |
| Aplikazio | NBPC |
| Ebazpena | 1366×768 |
| Konposizioa | LCM |
| Distira | 200 |
| CR | 500:1 |
| Koloreak | 262K |
| Atzeko argia | WLED |
| Interfazea | LVDS |
| panel marka | INNOLUX |
| panel eredua | N101BGE-L31 |
| panel mota | a-Si TFT-LCD , LCM |
| panelaren tamaina | 10.1 inch |
| ebazpena | 1366(RGB)×768 , WXGA |
| bistaratzeko modua | TN, Normally White, Transmissive |
| eremu aktiboa | 222.52×125.11 mm |
| eskema | 243×146.56×3.6 mm |
| forma estiloa | Flat (PCBA Flat, Depth 3.4~4.0mm) |
| azalera | Antiglare, Hard coating (3H) |
| distira | 200 cd/m² (Typ.) |
| kontraste-erlazioa | 500:1 (Typ.) |
| bistaratzeko koloreak | 262K (6-bit), CIE193145% |
| erantzun denbora | 3/7 (Typ.)(Tr/Td) |
| ikuspegi angelua | 45/45/20/45 (Typ.)(CR≥10)(L/R/U/D) |
| maiztasuna | 60Hz |
| lanpara mota | WLEDEmbedded (LED Driver) |
| seinale interfazea | LVDS (1 ch, 6-bit), 40 pins |
| sarrerako tentsioa | 3.3V (Typ.) |
| aplikazio | NBPC |
| B101EW02 V1 | AUO | 10.1 | 1280×720 |
| B101UAN01.1 | AUO | 10.1 | 1920×1200 |
| BP101WX1-210 | BOE | 10.1 | 1280×800 |
| LTL101AL06-003 | Samsung | 10.1 | 1280×800 |
| LTL101AL06-801 | Samsung | 10.1 | 1280×800 |
| N101BCG-GK1 | Innolux | 10.1 | 1366×768 |
| N101BCG-L21 | Innolux | 10.1 | 1366×768 |
| N101BGE-L21 | Innolux | 10.1 | 1366×768 |
| N101BGE-L31 | Innolux | 10.1 | 1366×768 |
| N101N6-L01 | Innolux | 10.1 | 1024×576 |
| B156XW02 V2 HW4A | AUO | 15.6 | 1366×768 |
| LP154WP1-TLA1 | LG Display | 15.4 | 1440×900 |
| LP154WU1-TLC1 | LG Display | 15.4 | 1920×1200 |
| LP156WF1-TPB1 | LG Display | 15.6 | 1920×1080 |
| LP156WF6-SPK1 | LG Display | 15.6 | 1920×1080 |
| LTD133EWHK | TOSHIBA | 13.3 | 1280×800 |
| LTN154U1-L02 | Samsung | 15.4 | 1920×1200 |
| LTN156HL01 | Samsung | 15.6 | 1920×1080 |
| N133FGE-L31 | Innolux | 13.3 | 1600×900 |
| N140HGE-EAA | Innolux | 14.0 | 1920×1080 |
