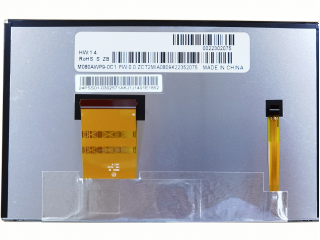

| PartZenbakia | M080AWP9 R0 |
| Marka | IVO |
| Tamaina | 8.0 |
| Aplikazio | Automotive Display |
| Ebazpena | 800×480 |
| Konposizioa | a-Si TFT-LCD, LCM |
| Distira | |
| CR | 700:1 |
| Koloreak | 262K |
| Atzeko argia | WLED |
| Interfazea | Parallel |
| marka | IVO |
| eredua | M080AWP9 R0 |
| diagonalaren tamaina | 8.0 inch |
| mota | a-Si TFT-LCD, LCM |
| pixel formatua | 800(RGB)×480 [WVGA] 115PPI |
| konfigurazioa | RGB Vertical Stripe |
| eremu aktiboa | 175.2(H)×105.12(V) mm |
| eskema dim. | 186.5(H)×117.22(V) ×6.65(D) mm |
| bezela eremua | 177.4(H)×107.32(V) mm |
| tratamendua | Antiglare |
| luminantzia | 750 cd/m² (Typ.) |
| kontraste-erlazioa | 700:1 (Typ.) (TM) |
| ikusi norabidea | - |
| erantzun denbora | 13 (Typ.)(Tr+Td) |
| ikuspegi angelua | 70/70/50/70 (Typ.)(CR≥10) |
| funtzionamendu modua | TN, Normally White, Transmissive |
| euskarria kolorea | 262K 70% NTSC |
| argi iturria | WLED [7S3P] , 30K hours , W/O Driver |
| pisua | 195/215g (Typ./Max.) |
| entzat diseinatua | Automotive Display |
| fotograma-tasa | 60Hz |
| ukipen-panela | Without |
| interfaze mota | Parallel RGB (1 ch, 6-bit) , 60 pins FPC |
| energia hornidura | 3.3/10.6/22/-7.0V (Typ.)(VCC/VDDA/VGH/VGL) |
| ingurunea | Operating Temperature: -30 ~ 85 °C ; Storage Temperature: -40 ~ 95 °C |
