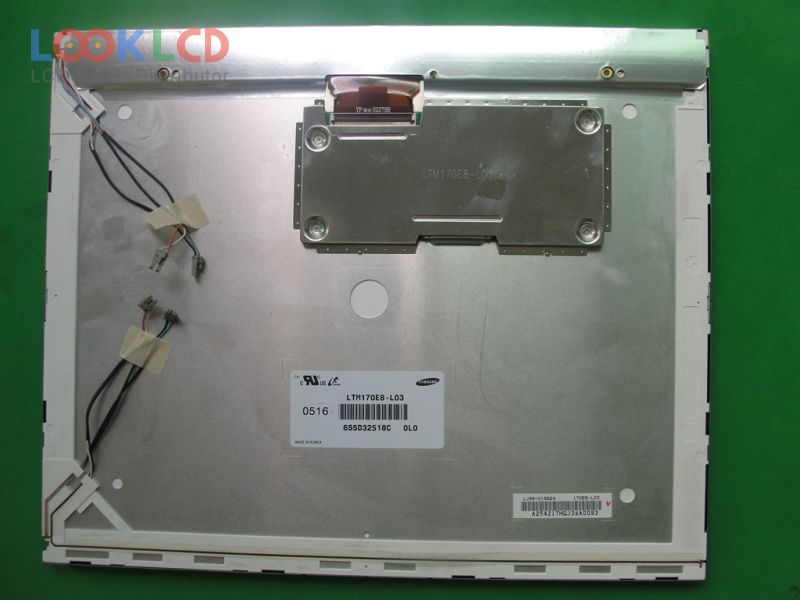

| PartZenbakia | LTM170E8-L03 |
| Marka | Samsung |
| Tamaina | 17.0 |
| Aplikazio | DMPC |
| Ebazpena | 1280×1024 |
| Konposizioa | LCM |
| Distira | 280 |
| CR | 1500:1 |
| Koloreak | 16.7M |
| Atzeko argia | CCFL |
| Interfazea | LVDS |
| panel marka | SAMSUNG |
| panel eredua | LTM170E8-L03 |
| panel mota | a-Si TFT-LCD , LCM |
| panelaren tamaina | 17.0 inch |
| ebazpena | 1280(RGB)×1024 , SXGA |
| bistaratzeko modua | PVA, Normally Black, Transmissive |
| eremu aktiboa | 337.92×270.336 mm |
| eskema | 354.9×290.3×16.5 mm |
| azalera | Antiglare (Haze 44%), Hard coating (3H) |
| distira | 280 cd/m² (Typ.) |
| kontraste-erlazioa | 1500:1 (Typ.) |
| bistaratzeko koloreak | 16.7M (8-bit), CIE193172% |
| erantzun denbora | 14 (Typ.)(Tr+Td); 8 (Typ.)(G to G) |
| ikuspegi angelua | 89/89/89/89 (Typ.)(CR≥10)(L/R/U/D) |
| maiztasuna | 60Hz |
| lanpara mota | 4 pcsCCFLWithout Driver |
| seinale interfazea | LVDS (2 ch, 8-bit), 30 pins |
| sarrerako tentsioa | 5.0V (Typ.) |
| aplikazio | DMPC |
| LTM170E4-P01 | Samsung | 17.0 | 1280×1024 |
| LTM170E6-L03 | Samsung | 17.0 | 1280×1024 |
| LTM170E6-L04 | Samsung | 17.0 | 1280×1024 |
| LTM170E8-L03 | Samsung | 17.0 | 1280×1024 |
| LTM170EI-A01 | Samsung | 17.0 | 1280×1024 |
| LTM170ET01 | Samsung | 17.0 | 1280×1024 |
| LTM170EU-A01 | Samsung | 17.0 | 1280×1024 |
| LTM170EU-L01 | Samsung | 17.0 | 1280×1024 |
| LTM170EU-L21 | Samsung | 17.0 | 1280×1024 |
| LTM170EX-L31 | Samsung | 17.0 | 1280×1024 |
| LM185WH2-T2BB | LG Display | 18.5 | 1366×768 |
| LM215WF3-SLN1 | LG Display | 21.5 | 1920×1080 |
| LM220WE1-TLE2 | LG Display | 22.0 | 1680×1050 |
| LM240WU7-SLB3 | LG Display | 24.0 | 1920×1200 |
| LTM230HT02 | Samsung | 23.0 | 1920×1080 |
| LTM270TT01 | Samsung | 27.0 | 2048×1152 |
| LTM340YP01 | Samsung | 34 | 3440×1440 |
| M185XW01 V1 | AUO | 18.5 | 1366×768 |
| M216H1-L01 | Innolux | 21.6 | 1920×1080 |
| M260J3-L01 | Innolux | 25.5 | 1920×1200 |
