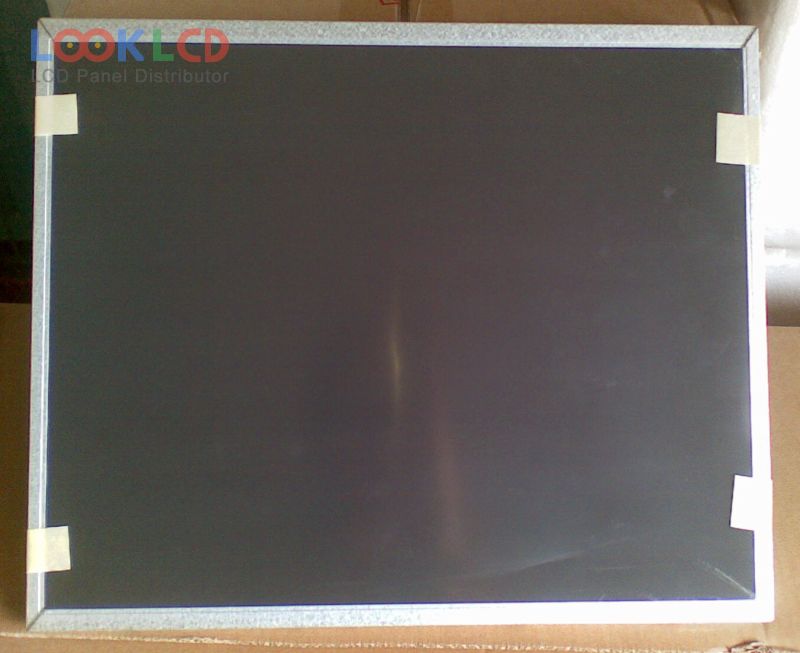

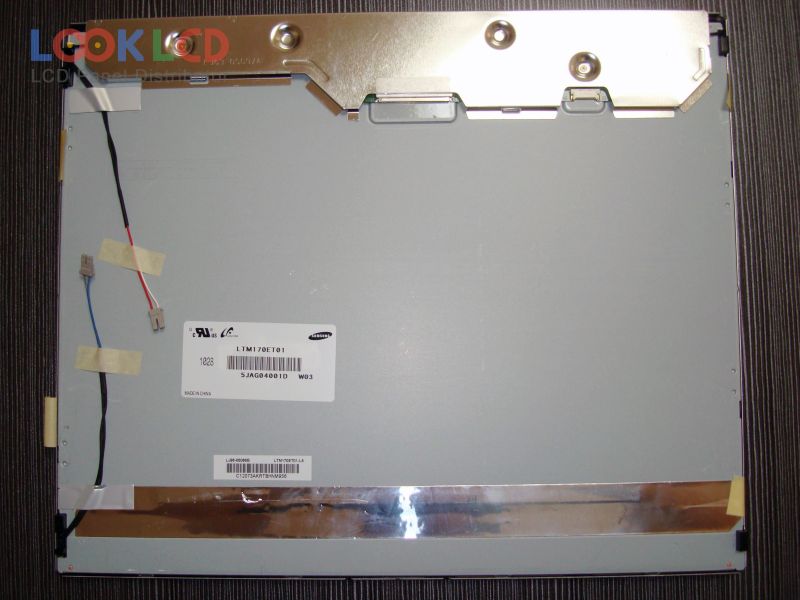

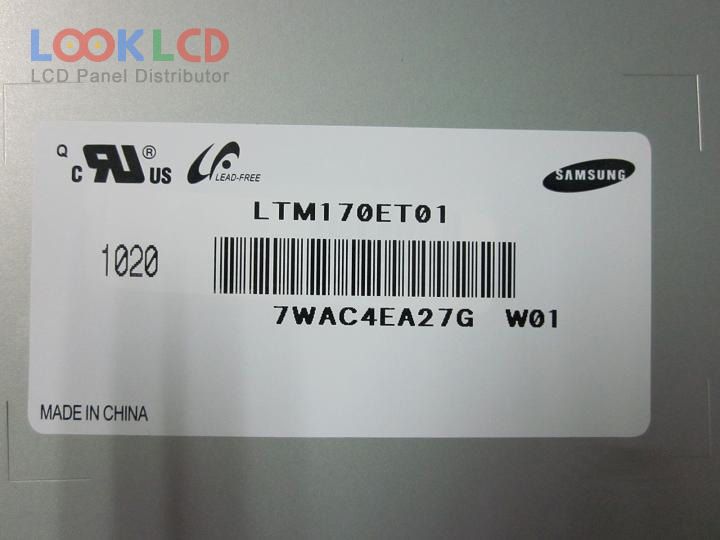

| PartZenbakia | LTM170ET01 |
| Marka | Samsung |
| Tamaina | 17.0 |
| Aplikazio | DMPC |
| Ebazpena | 1280×1024 |
| Konposizioa | LCM |
| Distira | 250 |
| CR | 1000:1 |
| Koloreak | 16.7M |
| Atzeko argia | CCFL |
| Interfazea | LVDS |
| panel marka | SAMSUNG |
| panel eredua | LTM170ET01 1 Compatible model |
| panel mota | a-Si TFT-LCD , LCM |
| panelaren tamaina | 17.0 inch |
| ebazpena | 1280(RGB)×1024 , SXGA |
| bistaratzeko modua | TN, Normally White, Transmissive |
| eremu aktiboa | 337.92×270.336 mm |
| eskema | 358.5×296.5×17.5 mm |
| azalera | |
| distira | 250 cd/m² (Typ.) |
| kontraste-erlazioa | 1000:1 (Min.) |
| bistaratzeko koloreak | 16.7M (6-bit + Hi-FRC), CIE193172% |
| erantzun denbora | 5 (Typ.)(Tr+Td) |
| ikuspegi angelua | 80/80/80/80 (Typ.)(CR≥10)(L/R/U/D) |
| maiztasuna | 60Hz |
| lanpara mota | 2 pcsCCFLWithout Driver |
| seinale interfazea | LVDS (2 ch, 8-bit), 30 pins |
| sarrerako tentsioa | 5.0V (Typ.) |
| aplikazio | DMPC |
| LTM170E6-L03 | Samsung | 17.0 | 1280×1024 |
| LTM170E6-L04 | Samsung | 17.0 | 1280×1024 |
| LTM170E8-L01 | Samsung | 17.0 | 1280×1024 |
| LTM170E8-L02 | Samsung | 17.0 | 1280×1024 |
| LTM170E8-L03 | Samsung | 17.0 | 1280×1024 |
| LTM170E8-L21 | Samsung | 17.0 | 1280×1024 |
| LTM170ET01 | Samsung | 17.0 | 1280×1024 |
| LTM170EU-L21 | Samsung | 17.0 | 1280×1024 |
| LTM170EX-L31 | Samsung | 17.0 | 1280×1024 |
| LTM170W1-L01 | Samsung | 17.0 | 1280×768 |
| CLAA170ES01E | CPT | 17.0 | 1280×1024 |
| IAQX10M | IDTech | 15.0 | 2048×1536 |
| L170E3 EC-5 | AUO | 17.0 | 1280×1024 |
| LM230WF5-TRA2 | LG Display | 23.0 | 1920×1080 |
| LM250WW1-SSA1 | LG Display | 25.0 | 2560×1080 |
| M150XN07 V1 | AUO | 15.0 | 1024×768 |
| M185BGE-L2U | Innolux | 18.5 | 1366×768 |
| M185XTN01.3 | AUO | 18.5 | 1366×768 |
| M185XW01 V2 | AUO | 18.5 | 1366×768 |
| M236H3-LA2 | Innolux | 23.6 | 1920×1080 |
