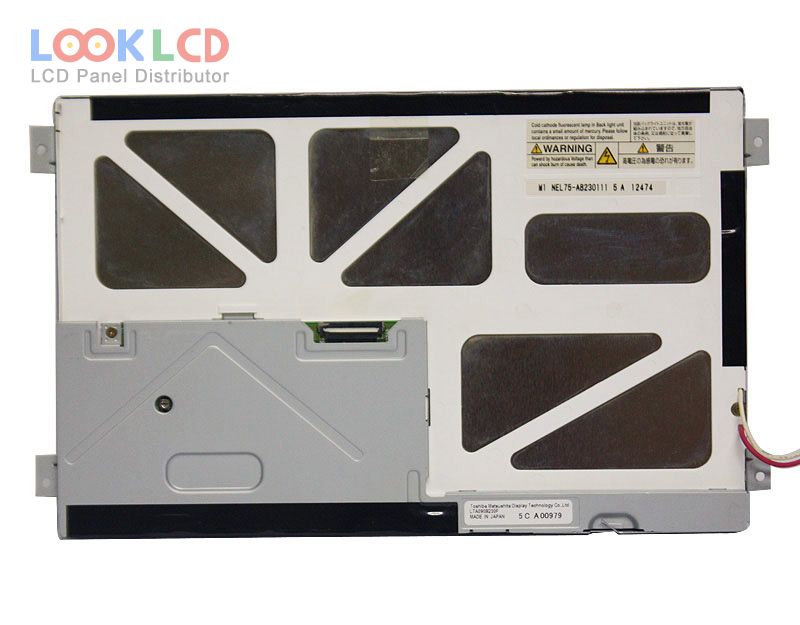

| PartZenbakia | LTA090B230F |
| Marka | TOSHIBA |
| Tamaina | 9.0 |
| Aplikazio | IA |
| Ebazpena | 536×328 |
| Konposizioa | LCM |
| Distira | 480 |
| CR | 250:1 |
| Koloreak | 262K |
| Atzeko argia | CCFL |
| Interfazea | TTL |
| panel marka | Toshiba Matsushita |
| panel eredua | LTA090B230F |
| panel mota | a-Si TFT-LCD , LCM |
| panelaren tamaina | 9.0 inch |
| ebazpena | 536(RGB)×328 |
| bistaratzeko modua | TN, Normally White, Transmissive |
| eremu aktiboa | 196.18×120.05 mm |
| eskema | 212.2×135.2 mm |
| azalera | Clear |
| distira | 480 cd/m² (Typ.) |
| kontraste-erlazioa | 250:1 (Typ.) |
| bistaratzeko koloreak | 262K (6-bit) |
| erantzun denbora | 70/40 (Max.)(Tr/Td) |
| ikuspegi angelua | 80/80/45/80 (Typ.)(CR≥10)(L/R/U/D) |
| lanpara mota | 1 pcsCCFLWithout Driver |
| seinale interfazea | Parallel RGB (1 ch, 6-bit), 30 pins |
| sarrerako tentsioa | 3.3V (Typ.) |
| aplikazio | IA |
