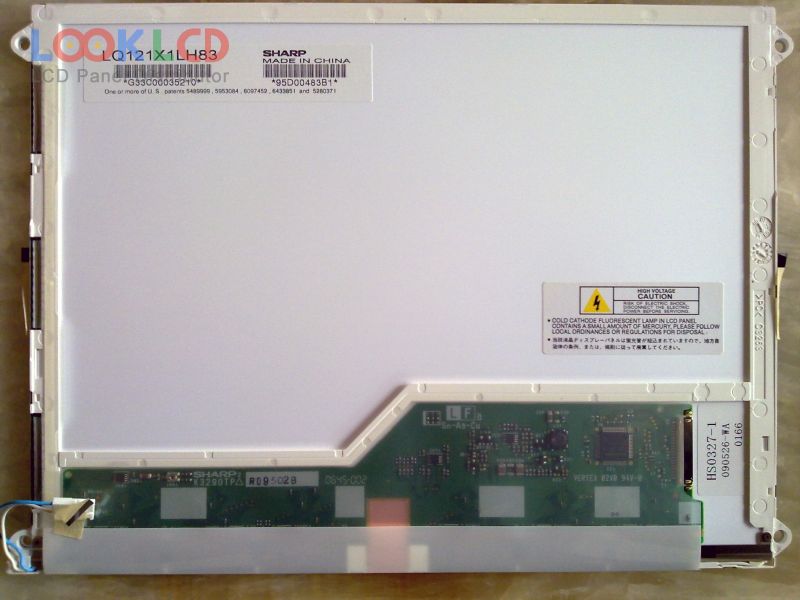

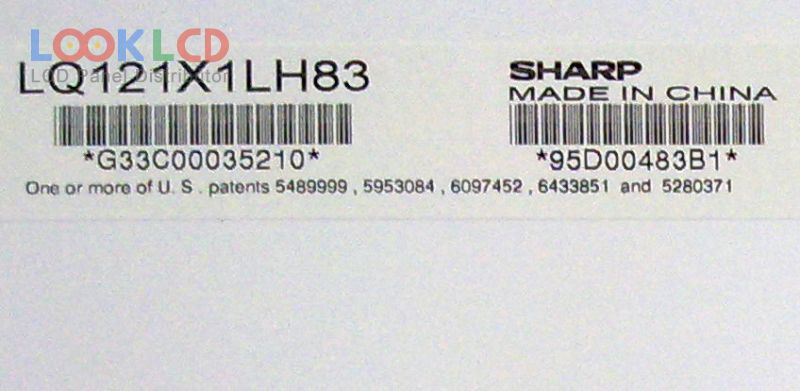

| PartZenbakia | LQ121X1LH83 |
| Marka | SHARP |
| Tamaina | 12.1 |
| Aplikazio | NBPC |
| Ebazpena | 1024×768 |
| Konposizioa | LCM |
| Distira | 200 |
| CR | 300:1 |
| Koloreak | 262K |
| Atzeko argia | CCFL |
| Interfazea | LVDS |
| panel marka | SHARP |
| panel eredua | LQ121X1LH83 1 Compatible model |
| panel mota | a-Si TFT-LCD , LCM |
| panelaren tamaina | 12.1 inch |
| ebazpena | 1024(RGB)×768 , XGA |
| bistaratzeko modua | TN, Normally White, Transmissive |
| eremu aktiboa | 245.76×184.32 mm |
| eskema | 274.5×197.5×5.35 mm |
| azalera | Antiglare, Hard coating (2H), Antireflection |
| distira | 200 cd/m² (Typ.) |
| kontraste-erlazioa | 300:1 (Typ.) |
| bistaratzeko koloreak | 262K (6-bit) |
| erantzun denbora | 30 (Typ.)(Tr+Td) |
| ikuspegi angelua | 45/45/10/30 (Min.)(CR≥10)(L/R/U/D) |
| maiztasuna | 60Hz |
| lanpara mota | 1 pcsCCFLWithout Driver |
| seinale interfazea | LVDS (1 ch, 6-bit), 20 pins |
| sarrerako tentsioa | 3.3V (Typ.) |
| aplikazio | NBPC |
