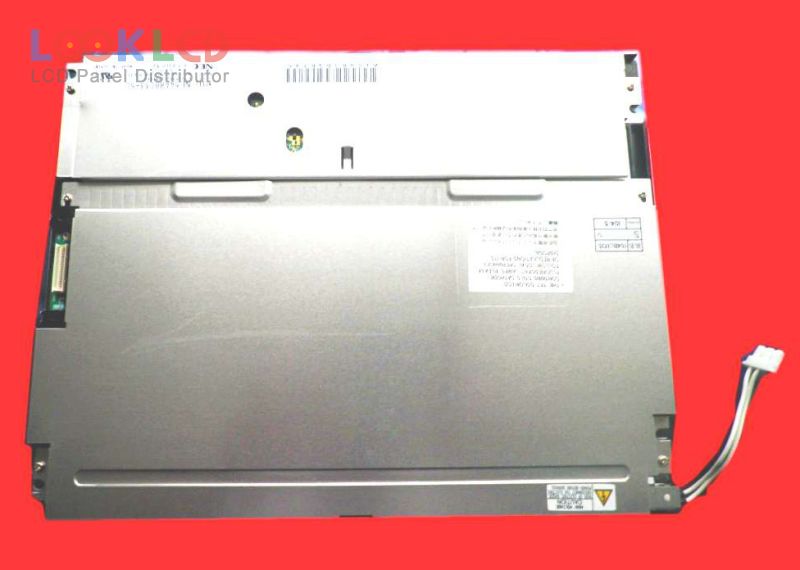

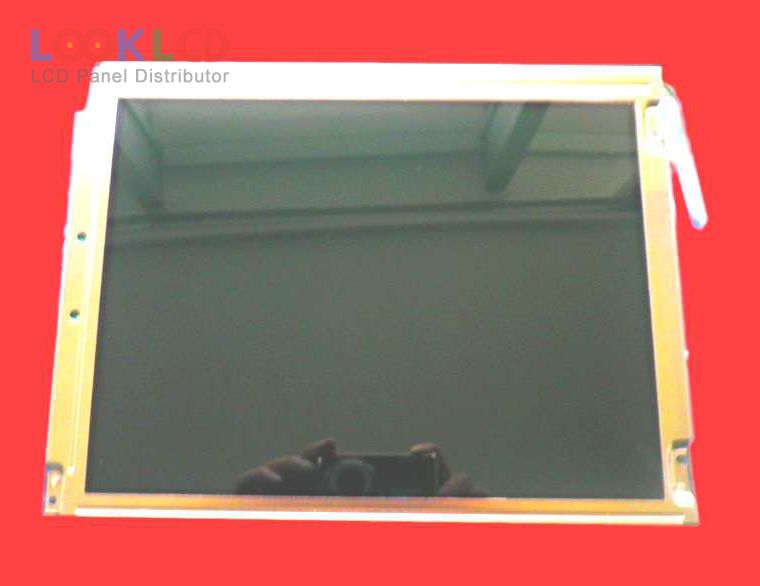

| PartZenbakia | NL6448BC33-50 |
| Marka | NLT |
| Tamaina | 10.4 |
| Aplikazio | IA |
| Ebazpena | 640×480 |
| Konposizioa | LCM |
| Distira | 250 |
| CR | 100:1 |
| Koloreak | 262K |
| Atzeko argia | CCFL |
| Interfazea | TTL |
| panel marka | NEC |
| panel eredua | NL6448BC33-50 1 Compatible model |
| panel mota | a-Si TFT-LCD , LCM |
| panelaren tamaina | 10.4 inch |
| ebazpena | 640(RGB)×480 , VGA |
| bistaratzeko modua | TN, Normally White, Transflective |
| eremu aktiboa | 211.2×158.4 mm |
| eskema | 243×185.1×11.5 mm |
| azalera | Clear, Hard coating (2H), Antireflection |
| distira | 250 cd/m² (Typ.) |
| kontraste-erlazioa | 100:1 (Typ.)(Transmissive)8:1 (Typ.)(Reflective) |
| bistaratzeko koloreak | 262K (6-bit), CIE193150% |
| erantzun denbora | 5/20 (Typ.)(Tr/Td) |
| ikuspegi angelua | 75/55/40/55 (Typ.)(CR≥10)(L/R/U/D) |
| maiztasuna | 60Hz |
| lanpara mota | 2 pcsCCFLWithout Driver |
| seinale interfazea | CMOS (1 ch, 6-bit), 31 pins |
| sarrerako tentsioa | 3.3/5.0V (Typ.)(VCC) |
| aplikazio | IA |
