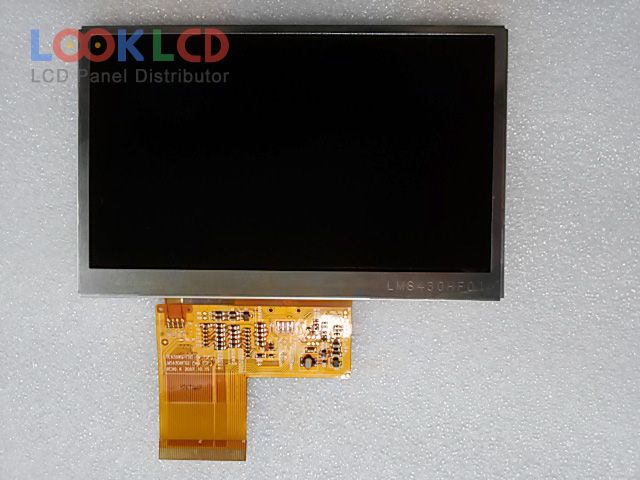

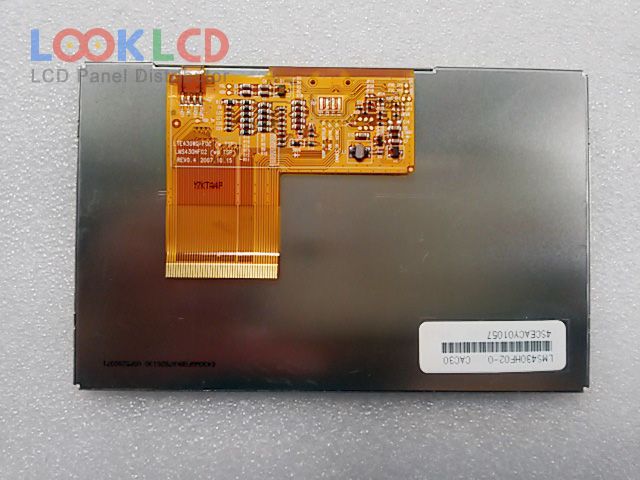

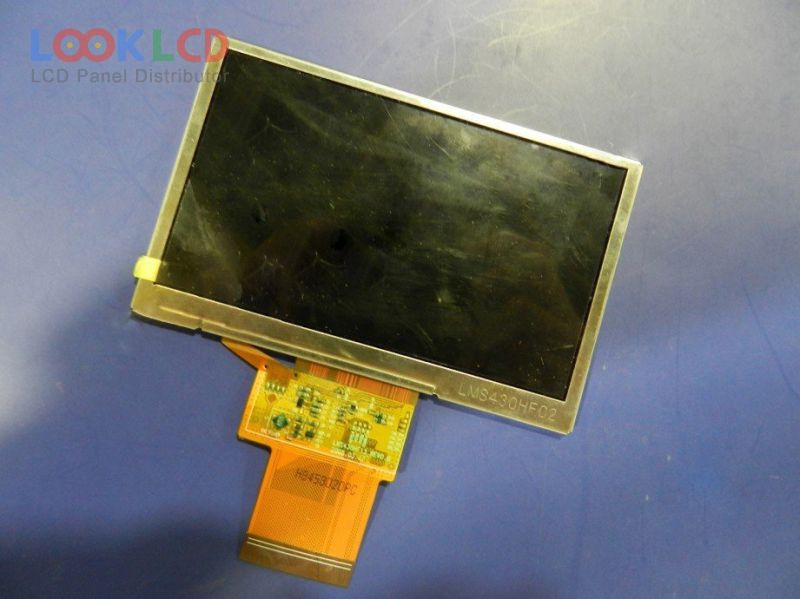

| PartZenbakia | LMS430HF02 |
| Marka | Samsung |
| Tamaina | 4.3 |
| Aplikazio | PND |
| Ebazpena | 480×272 |
| Konposizioa | LCM |
| Distira | 500 |
| CR | 900:1 |
| Koloreak | 16.7M |
| Atzeko argia | WLED |
| Interfazea | TTL |
| panel marka | SAMSUNG |
| panel eredua | LMS430HF02 |
| panel mota | a-Si TFT-LCD , LCM |
| panelaren tamaina | 4.3 inch |
| ebazpena | 480×272(RGB) , WQVGA |
| bistaratzeko modua | VA, Normally Black, TMR |
| eremu aktiboa | 95.04×53.856 mm |
| eskema | 105.5×67.2 mm |
| azalera | |
| distira | 500 cd/m² (Typ.) |
| kontraste-erlazioa | 900 : 1 (Typ.) |
| bistaratzeko koloreak | 16.7M (8-bit), CIE193150% |
| erantzun denbora | 17/15 (Typ.)(Tr/Td) |
| ikuspegi angelua | 80/80/80/80 (Typ.)(CR≥10)(L/R/U/D) |
| maiztasuna | 60Hz |
| lanpara mota | 10S1PWLEDWithout Driver |
| seinale interfazea | Parallel RGB (1 ch, 8-bit), 45 pins |
| sarrerako tentsioa | 2.5/3.3V (Typ.)(VDD) |
| aplikazio | PND |
