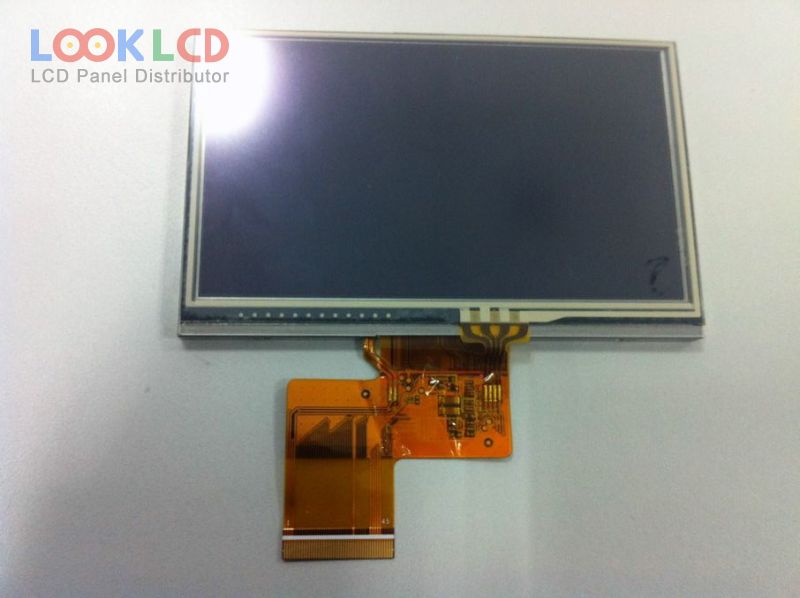

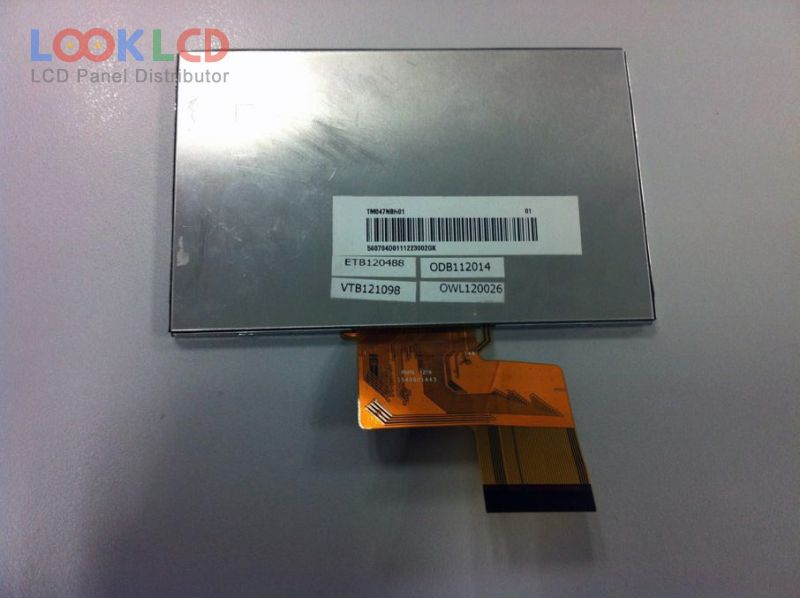

| PartZenbakia | TM047NBH01 |
| Marka | Tianma |
| Tamaina | 4.7 |
| Aplikazio | PND |
| Ebazpena | 480×272 |
| Konposizioa | LCM |
| Distira | 280 |
| CR | 500:1 |
| Koloreak | 16.7M |
| Atzeko argia | WLED |
| Interfazea | TTL |
| panel marka | TIANMA |
| panel eredua | TM047NBH01 1 Compatible model |
| panel mota | a-Si TFT-LCD , LCM |
| panelaren tamaina | 4.7 inch |
| ebazpena | 480(RGB)×272 , WQVGA |
| bistaratzeko modua | TN, Normally White, Transmissive |
| eremu aktiboa | 103.68×58.752 mm |
| eskema | 114.3×72.5 mm |
| azalera | Antiglare, Hard coating (3H) |
| distira | 280 cd/m² (Typ.) |
| kontraste-erlazioa | 500:1 (Typ.) |
| bistaratzeko koloreak | 16.7M (8-bit), CIE193150% |
| erantzun denbora | 25 (Typ.)(Tr+Td) |
| ikuspegi angelua | 70/70/60/70 (Typ.)(CR≥10)(L/R/U/D) |
| maiztasuna | 60Hz |
| lanpara mota | 5S2PWLEDWithout Driver |
| seinale interfazea | Parallel RGB (1 ch, 8-bit) + SPI, 45 pins |
| sarrerako tentsioa | 3.3V (Typ.) |
| aplikazio | PND |
| DMF5003NF-FW | Kyocera | 4.7 | 160×128 |
| LH467WX1-SD01 | LG Display | 4.7 | 768×1280 |
| LM32010P | SHARP | 4.7 | 320×240 |
| LQ047K3SX06 | SHARP | 4.7 | 720×1280 |
| LQ047K3SX08 | SHARP | 4.7 | 720×1280 |
| PG320240C | Other | 4.7 | 320×240 |
| TM047NBH01 | Tianma | 4.7 | 480×272 |
| TM047NBH03 | Tianma | 4.7 | 480×272 |
| TM047NDH01 | Tianma | 4.7 | 480×272 |
| TM047XDZP02 | Tianma | 4.7 | 540×960 |
| AT050TN34 | Innolux | 5.0 | 480×272 |
| CLAA048LA0BCW | CPT | 4.8 | 800×480 |
| DLC0500HZG-8 | Other | 5.0 | 800×480 |
| EJ050NA-01D | Innolux | 5.0 | 800×480 |
| LB050WQ2-TD03 | LG Display | 5.0 | 480×272 |
| LMS430HF20 | Samsung | 4.3 | 480×272 |
| LMS430HF41-004 | Samsung | 4.3 | 480×272 |
| LQ043T3DG01 | SHARP | 4.3 | 480×272 |
| TM047NDH01 | Tianma | 4.7 | 480×272 |
| TMT035DNAFWU19 | Tianma | 3.5 | 320×240 |
