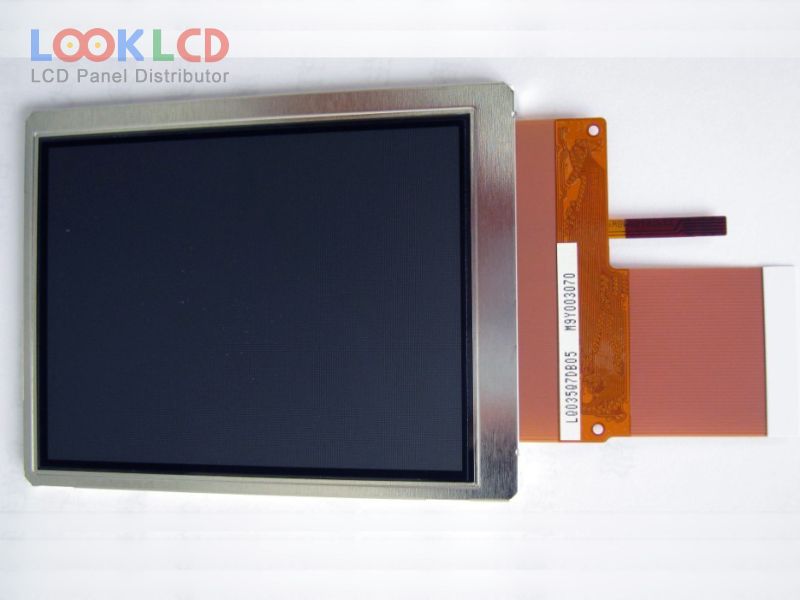

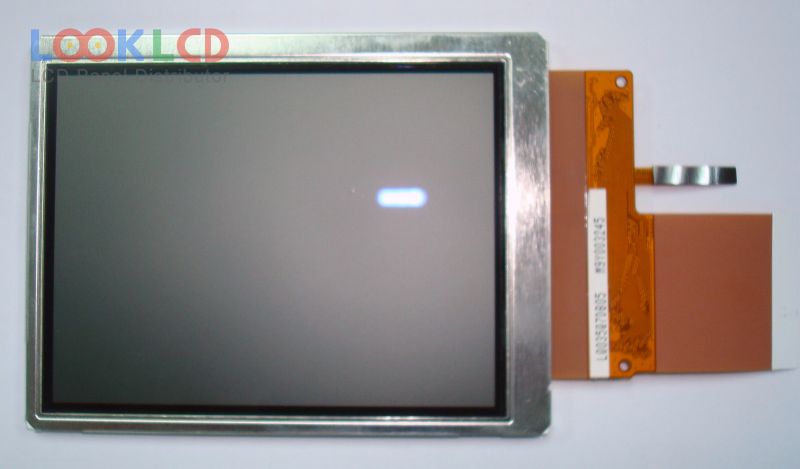

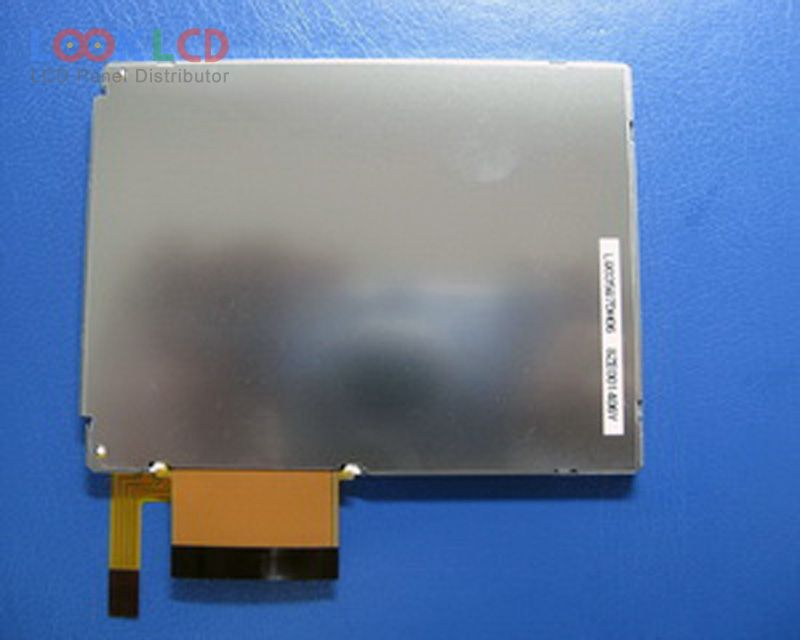

| PartZenbakia | LQ035Q7DB05 |
| Marka | SHARP |
| Tamaina | 3.5 |
| Aplikazio | HHP |
| Ebazpena | 240×320 |
| Konposizioa | LCM |
| Distira | 160 |
| CR | 85:1 |
| Koloreak | 262K |
| Atzeko argia | WLED |
| Interfazea | TTL |
| panel marka | SHARP |
| panel eredua | LQ035Q7DB05 |
| panel mota | a-Si TFT-LCD , LCM |
| panelaren tamaina | 3.5 inch |
| ebazpena | 240(RGB)×320 , QVGA |
| bistaratzeko modua | TN, Normally White, Transflective |
| eremu aktiboa | 53.64×71.52 mm |
| eskema | 65×85×3.7 mm |
| azalera | Hard coating (3H) |
| distira | 160 cd/m² (Typ.) |
| kontraste-erlazioa | 85:1 (Typ.)(Transmissive)15:1 (Typ.)(Reflective) |
| bistaratzeko koloreak | 262K (6-bit) |
| erantzun denbora | 30/50 (Typ.)(Tr/Td) |
| ikuspegi angelua | 40/40/40/50 (Typ.)(CR≥2)(L/R/U/D) |
| maiztasuna | 60Hz |
| lanpara mota | 6S1PWLEDWithout Driver |
| seinale interfazea | Parallel RGB (1 ch, 6-bit), 50 pins |
| sarrerako tentsioa | 5.0/3.3/15.0/-10.0V (Typ.)(VSHA/VSHD/VDD/VEE) |
| aplikazio | HHP |
