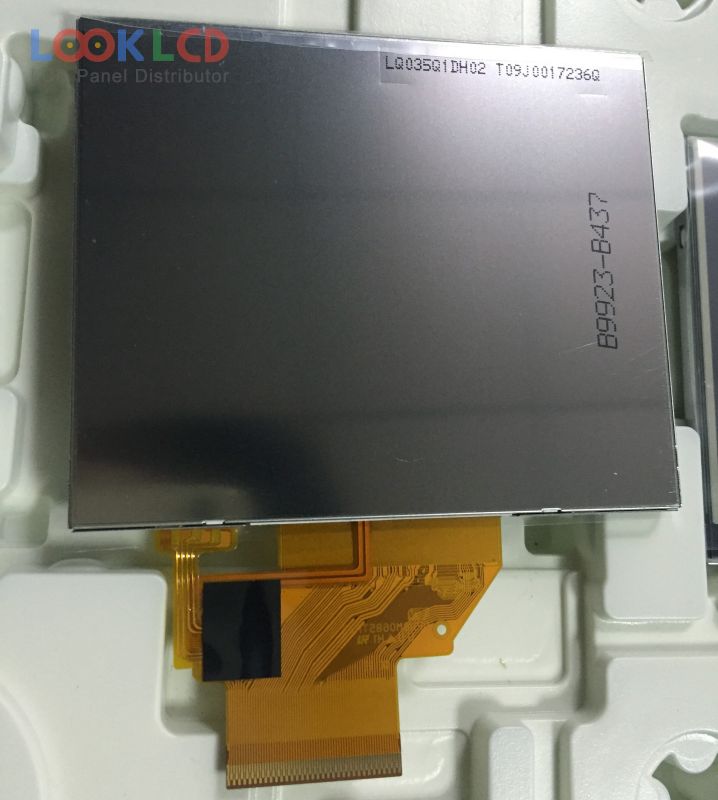

| PartZenbakia | LQ035Q1DH02 |
| Marka | SHARP |
| Tamaina | 3.5 |
| Aplikazio | DSC |
| Ebazpena | 320×240 |
| Konposizioa | LCM |
| Distira | 400 |
| CR | 300:1 |
| Koloreak | 262K |
| Atzeko argia | WLED |
| Interfazea | TTL |
| panel marka | SHARP |
| panel eredua | LQ035Q1DH02 |
| panel mota | a-Si TFT-LCD , LCM |
| panelaren tamaina | 3.5 inch |
| ebazpena | 320(RGB)×240 , QVGA |
| bistaratzeko modua | TN, Normally White, Transmissive |
| eremu aktiboa | 70.56×52.92 mm |
| eskema | 76.9×63.9×4.7 mm |
| azalera | Antiglare, Hard coating (2H) |
| distira | 400 cd/m² (Typ.) |
| kontraste-erlazioa | 300:1 (Typ.) |
| bistaratzeko koloreak | 262K (6-bit), CIE193148% |
| erantzun denbora | 30/30 (Typ.)(Tr/Td) |
| ikuspegi angelua | 45/45/20/55 (Typ.)(CR≥10)(L/R/U/D) |
| maiztasuna | 60Hz |
| lanpara mota | 7S1PWLEDWithout Driver |
| seinale interfazea | Parallel RGB (1 ch, 6-bit) + SPI, 67 pins |
| sarrerako tentsioa | 1.8/3.3V (Typ.)(VDDIO/VCI) |
| aplikazio | DSC |
