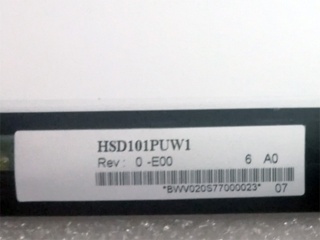

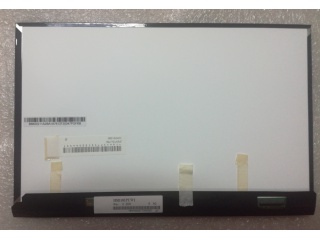

| PartZenbakia | HSD101PUW1-E00 |
| Marka | HannStar |
| Tamaina | 10.1 |
| Aplikazio | Pad & Tablet |
| Ebazpena | 1920×1200 |
| Konposizioa | a-Si TFT-LCD , LCM |
| Distira | |
| CR | 1000:1 |
| Koloreak | 16.7M |
| Atzeko argia | WLED |
| Interfazea | MIPI |
| marka | HannStar |
| diagonalaren tamaina | 10.1 inch |
| pixel formatua | 1920(RGB)×1200 [WUXGA] 225PPI |
| eremu aktiboa | 216.576(H)×135.36(V) mm |
| luminantzia | - |
| ikusi norabidea | Symmetry |
| ikuspegi angelua | 89/89/89/89 (Typ.)(CR≥10) |
| euskarria kolorea | 16.7M 50% NTSC |
| pisua | - |
| fotograma-tasa | 60Hz |
| interfaze mota | MIPI (4 data lanes) , 39 pins Connector |
| energia hornidura | 3.3V (Typ.) |
| ingurunea | Operating Temperature: 0 ~ 50 °C ; Storage Temperature: -20 ~ 60 °C |
| eredua | HSD101PUW1-E00 |
| mota | a-Si TFT-LCD , LCM |
| konfigurazioa | RGB Vertical Stripe |
| eskema dim. | - |
| kontraste-erlazioa | 1000:1 (Typ.) (TM) |
| erantzun denbora | 25 (Typ.)(Tr+Td) |
| funtzionamendu modua | IPS Pro, Normally Black, Transmissive |
| argi iturria | WLED , 10K hours |
| entzat diseinatua | Pad & Tablet |
| ukipen-panela | Without |
