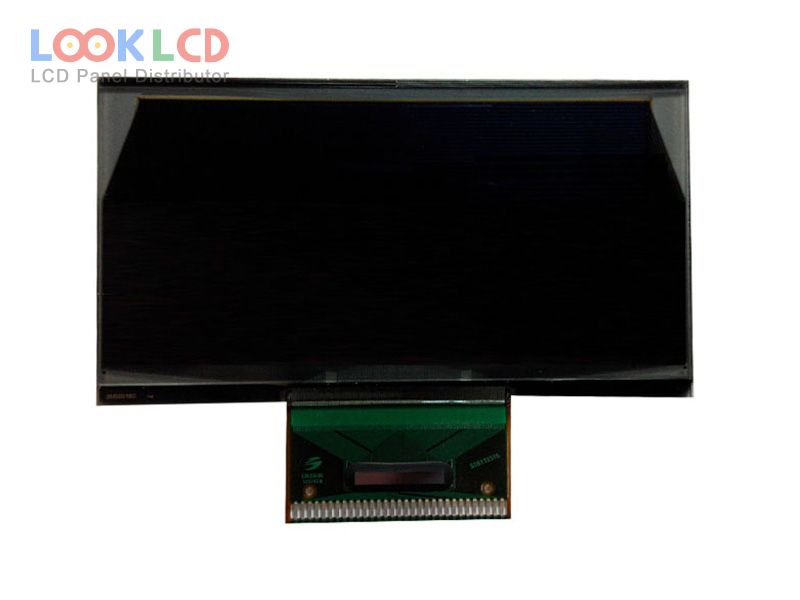

OEL9M5001-Y-E

OEL9M5001-Y-E
OEL9M5001-Y-E thumb
Marka
Other
Tamaina
2.7
Aplikazio
IA
Ebazpena
128×64
Konposizioa
OLED
Distira
80
CR
10000:1
Koloreak
Grayscale(Y)
Atzeko argia
self
Interfazea
CPU/SPI
In Stock
10467
Zehaztapenak

PartZenbakia OEL9M5001-Y-E
MarkaOther
Tamaina2.7
AplikazioIA
Ebazpena128×64
KonposizioaOLED
Distira80
CR10000:1
KoloreakGrayscale(Y)
Atzeko argiaself
InterfazeaCPU/SPI
panel markaTRULY
panel ereduaOEL9M5001-Y-E
panel mota PM-OLED , OLED
panelaren tamaina2.7 inch
ebazpena128×64
eremu aktiboa61.41×30.69 mm
eskema73×40.24×2.15 mm
azalera
distira80 cd/m² (Typ.)
kontraste-erlazioa10000 : 1 (Min.)
bistaratzeko koloreakGrayscale(Y) (4-bit)
ikuspegi angelua80/80/80/80 (Min.)(L/R/U/D)
maiztasuna100Hz
gidariaren icTAB Built-in SSD1325T6R1
seinale interfazea8-bit 6800/8080 parallel, SPI, 30 pins
sarrerako tentsioa3.0/13.0V (Typ.)(VDD/VCC)
aplikazioIA
