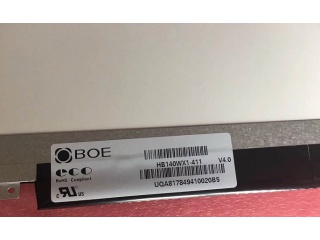

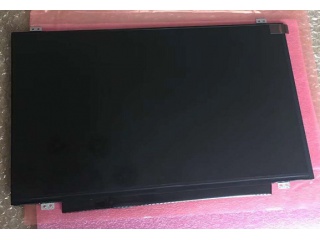

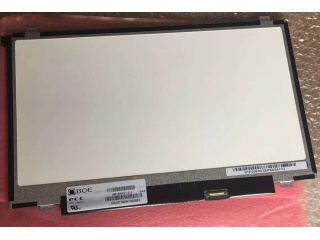

| PartZenbakia | HB140WX1-411 |
| Marka | BOE |
| Tamaina | 14.0 |
| Aplikazio | Laptop |
| Ebazpena | 1366×768 |
| Konposizioa | a-Si TFT-LCD, LCM |
| Distira | |
| CR | 600:1 |
| Koloreak | 262K |
| Atzeko argia | 9S4P |
| Interfazea | eDP |
| panel marka | BOE |
| panel eredua | HB140WX1-411 (BOE0600) |
| panelaren tamaina | 14.0" |
| panel mota | a-Si TFT-LCD, LCM |
| ebazpena | 1366(RGB)×768, WXGA, 112PPI |
| pixel formatua | RGB Vertical Stripe |
| bistaratzeko eremua | 309.399(W)×173.952(H) mm |
| bezela irekidura | - |
| eskema tamaina | 320.4(W)×205.1(H) ×3.6(D) mm |
| azalera | Antiglare |
| distira | 220 cd/m² (Typ.) |
| kontraste-erlazioa | 600:1 (Typ.) (TM) |
| ikuspegi angelua | 45/45/20/40 (Typ.)(CR≥10) |
| bistaratzeko modua | TN, Normally White, Transmissive |
| ikuspegirik onena | 6 o'clock |
| erantzun denbora | 8 (Typ.)(Tr+Td) |
| bistaratzeko koloreak | 262K 45% NTSC |
| lanpara mota | 9S4P WLED , 15K hours , With LED Driver |
| maiztasuna | 60Hz |
| pantaila taktila | Without |
| forma estiloa | Flat (PCBA Flat, T3.4~4.0mm) |
| aplikazio | Laptop |
| seinale interfazea | eDP (1 Lane) , HBR1 (2.7G/lane) , 30 pins Connector |
| sarrerako tentsioa | 3.3V (Typ.) |
| ingurunea | Operating Temp.: 0 ~ 50 °C ; Storage Temp.: -20 ~ 60 °C |
