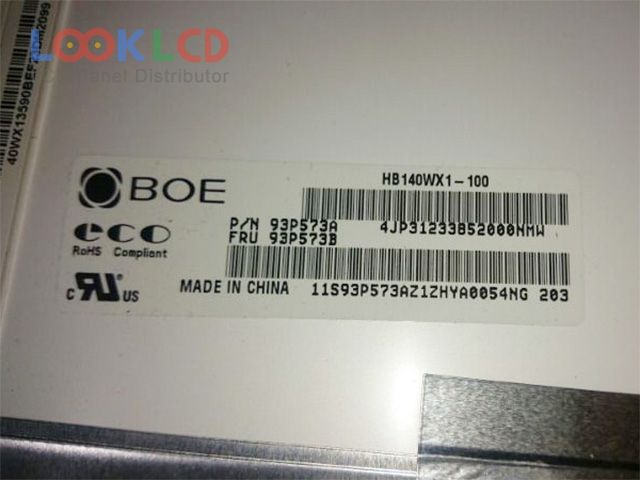

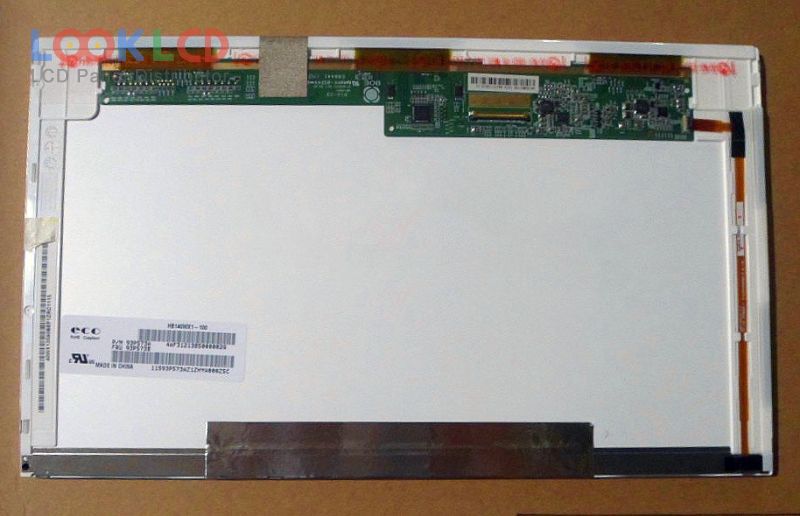

| PartZenbakia | HB140WX1-100 |
| Marka | BOE |
| Tamaina | 14.0 |
| Aplikazio | NBPC |
| Ebazpena | 1366×768 |
| Konposizioa | LCM |
| Distira | 200 |
| CR | 600:1 |
| Koloreak | 262K |
| Atzeko argia | WLED |
| Interfazea | LVDS |
| panel marka | BOE |
| panel eredua | HB140WX1-100 4 Compatible model |
| panel mota | a-Si TFT-LCD , LCM |
| panelaren tamaina | 14.0 inch |
| ebazpena | 1366(RGB)×768 , WXGA |
| bistaratzeko modua | TN, Normally White, Transmissive |
| eremu aktiboa | 309.399×173.952 mm |
| eskema | 323.5×192×5.2 mm |
| forma estiloa | Wedge (PCBA Bent, Depth ≥5.2mm) |
| azalera | Glare (Haze 0%), Hard coating (3H) |
| distira | 200 cd/m² (Typ.) |
| kontraste-erlazioa | 600:1 (Typ.) |
| bistaratzeko koloreak | 262K (6-bit), CIE193150% |
| erantzun denbora | 8 (Typ.)(Tr+Td) |
| ikuspegi angelua | 45/45/20/40 (Typ.)(CR≥10)(L/R/U/D) |
| maiztasuna | 60Hz |
| lanpara mota | 8S5PWLEDEmbedded (LED Driver) |
| seinale interfazea | LVDS (1 ch, 6-bit), 40 pins |
| sarrerako tentsioa | 3.3V (Typ.) |
| aplikazio | NBPC |
| HB140WH1-504 | BOE | 14.0 | 1366×768 |
| HB140WX1-100 | BOE | 14.0 | 1366×768 |
| HB140WX1-200 | BOE | 14.0 | 1366×768 |
| HB140WX1-300 | BOE | 14.0 | 1366×768 |
| HB140WX1-301 | BOE | 14.0 | 1366×768 |
| HB140WX1-400 | BOE | 14.0 | 1366×768 |
| HB140WX1-401 | BOE | 14.0 | 1366×768 |
| HB140WX1-500 | BOE | 14.0 | 1366×768 |
| HB140WX1-501 | BOE | 14.0 | 1366×768 |
| LP140WH1-TLB3 | LG Display | 14.0 | 1366×768 |
| B140XTN03.3 HW0A | AUO | 14.0 | 1366×768 |
| B140XW03 V1 | AUO | 14.0 | 1366×768 |
| B141EW05 V4 | AUO | 14.1 | 1280×800 |
| LP156WD1-TLA1 | LG Display | 15.6 | 1600×900 |
| LP171WE3-TLA5 | LG Display | 17.1 | 1680×1050 |
| LP173WF1-TLA1 | LG Display | 17.3 | 1920×1080 |
| LTN140AT20-P02 | Samsung | 14.0 | 1366×768 |
| LTN170BT11-D03 | Samsung | 17.0 | 1440×900 |
| N141C1-L01 | Innolux | 14.1 | 1440×900 |
| N156BGE-E21 | Innolux | 15.6 | 1366×768 |
