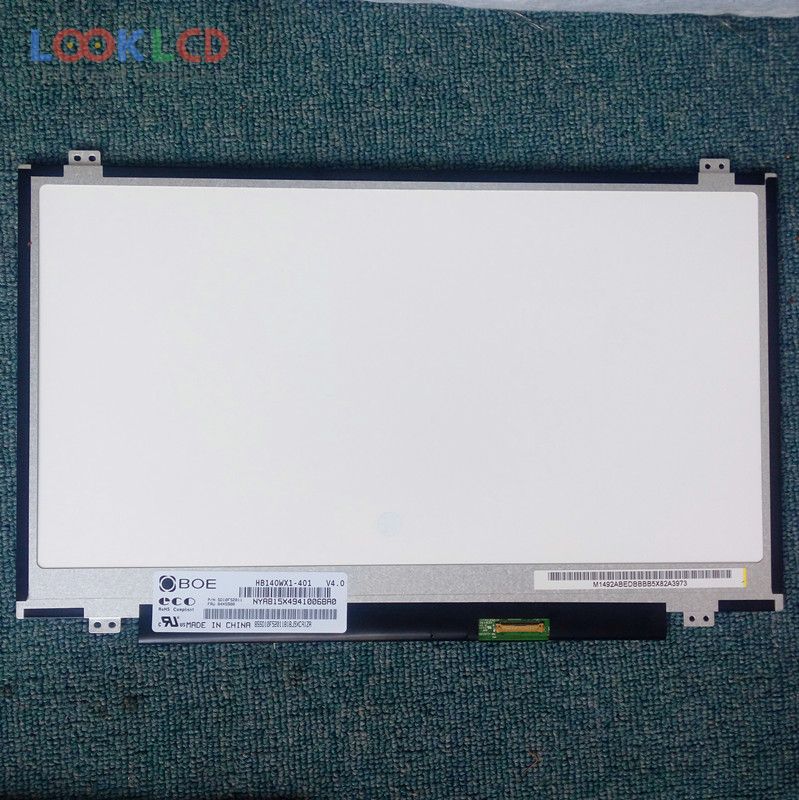

| PartZenbakia | HB140WX1-401 |
| Marka | BOE |
| Tamaina | 14.0 |
| Aplikazio | NBPC |
| Ebazpena | 1366×768 |
| Konposizioa | LCM |
| Distira | 200 |
| CR | 500:1 |
| Koloreak | 262K |
| Atzeko argia | WLED |
| Interfazea | eDP |
| panel marka | BOE |
| panel eredua | HB140WX1-401 |
| panel mota | a-Si TFT-LCD , LCM |
| panelaren tamaina | 14.0 inch |
| ebazpena | 1366(RGB)×768 , WXGA |
| bistaratzeko modua | TN, Normally White, Transmissive |
| eremu aktiboa | 309.399×173.952 mm |
| eskema | 320.9×187.6×3.6 mm |
| forma estiloa | Flat (PCBA Flat, Depth 3.4~4.0mm) |
| azalera | Antiglare, Hard coating (3H) |
| distira | 200 cd/m² (Typ.) |
| kontraste-erlazioa | 500:1 (Typ.) |
| bistaratzeko koloreak | 262K (6-bit), CIE193145% |
| erantzun denbora | 12 (Typ.)(Tr+Td) |
| ikuspegi angelua | 45/45/20/40 (Typ.)(CR≥10)(L/R/U/D) |
| maiztasuna | 60Hz |
| lanpara mota | 9S4PWLEDEmbedded (LED Driver) |
| seinale interfazea | eDP (1 Lane), 30 pins |
| sarrerako tentsioa | 3.3V (Typ.) |
| aplikazio | NBPC |
| HB140WH1-504 | BOE | 14.0 | 1366×768 |
| HB140WX1-100 | BOE | 14.0 | 1366×768 |
| HB140WX1-200 | BOE | 14.0 | 1366×768 |
| HB140WX1-300 | BOE | 14.0 | 1366×768 |
| HB140WX1-301 | BOE | 14.0 | 1366×768 |
| HB140WX1-400 | BOE | 14.0 | 1366×768 |
| HB140WX1-401 | BOE | 14.0 | 1366×768 |
| HB140WX1-500 | BOE | 14.0 | 1366×768 |
| HB140WX1-501 | BOE | 14.0 | 1366×768 |
| N140BGE-L32 | Innolux | 14.0 | 1366×768 |
| B154PW02 V1 | AUO | 15.4 | 1440×900 |
| B173HAN01.0 | AUO | 17.3 | 1920×1080 |
| HSD121PHW1-A01 | HannStar | 12.1 | 1366×768 |
| HT140WXB-100 | BOE | 14.0 | 1366×768 |
| LP133QH1-SPA1 | LG Display | 13.3 | 2560×1440 |
| LP133WH2-TLHA | LG Display | 13.3 | 1366×768 |
| LP154WU1-A1K1 | LG Display | 15.4 | 1920×1200 |
| LTN156AT23-W01 | Samsung | 15.6 | 1366×768 |
| N140BGE-L42 | Innolux | 14.0 | 1366×768 |
| N140FGE-LA2 | Innolux | 14.0 | 1600×900 |
