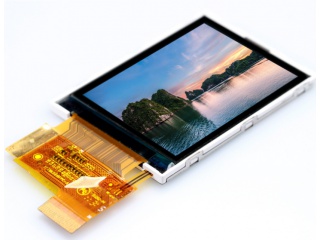

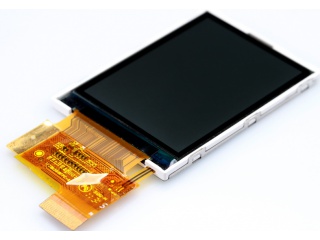

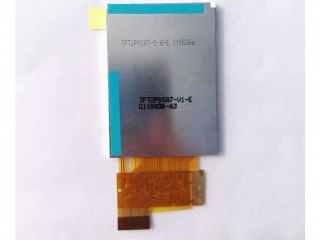

| PartZenbakia | H220VA01 |
| Marka | AUO |
| Tamaina | 2.2 |
| Aplikazio | Mobile Phone |
| Ebazpena | 240×320 |
| Konposizioa | LCM , a-Si TFT-LCD |
| Distira | |
| CR | 75:19:1 |
| Koloreak | 262K |
| Atzeko argia | 4S1P |
| Interfazea | Parallel |
| fabrikatzailea | AUO |
| pantailaren tamaina | 2.2 inch |
| pixel-zenbakia | 240(RGB)×320 (QVGA) 180PPI |
| eremu aktiboa (mm) | 33.84 × 45.12 (H×V) |
| bezela eremua (mm) | 35.4 × 46.92 (H×V) |
| luminantzia | 100 cd/m² (Typ.) |
| ikuspegi angelua | 47/28/30/80 (Typ.)(CR≥10) |
| ikuspegi ona | 6 o'clock |
| kolore-sakonera | 262K 42% NTSC |
| masa | - |
| freskatze tasa | - |
| seinale mota | Parallel RGB (1 ch, 6-bit) + SPI , 39 pins FPC |
| tentsio-hornidura | 2.8V (Typ.) |
| gehienez. balorazioak | Storage Temp.: -30 ~ 80 °C Operating Temp.: -20 ~ 70 °C |
| ereduaren izena | H220VA01 |
| pantaila mota | LCM , a-Si TFT-LCD |
| antolamendua | RGB Vertical Stripe |
| eskema (mm) | 40.6 × 56.66 × 3.11 (H×V×D) |
| tratamendua | - |
| kontraste-erlazioa | 75 : 1 (Typ.) (TM) 9:1 (Typ.) (RF) |
| erantzuna | 29 (Typ.)(Tr+Td) ms |
| lan egiteko modua | TN, Normally White, Transflective |
| atzeko argia | 4S1P WLED , No Driver |
| erabiltzen | Mobile Phone |
| pantaila taktila | Without |
