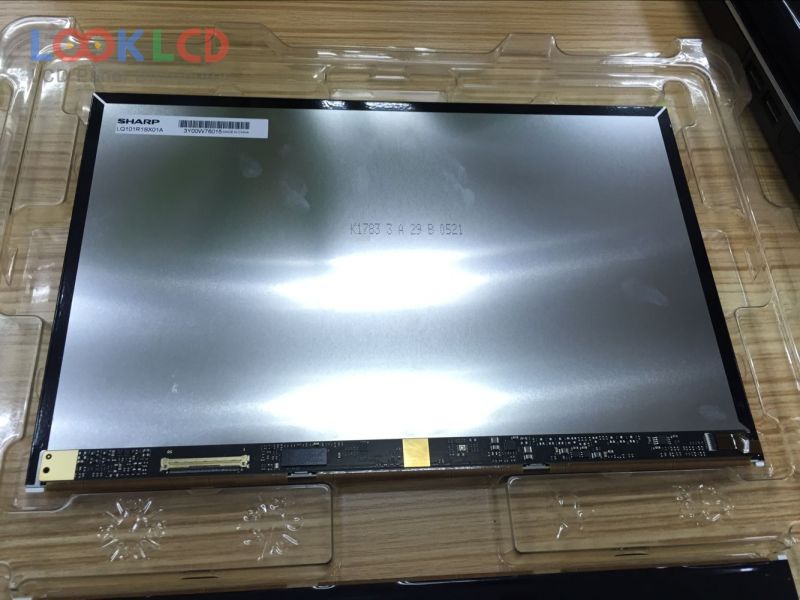

| PartZenbakia | LQ101R1SX01A |
| Marka | SHARP |
| Tamaina | 10.1 |
| Aplikazio | PAD |
| Ebazpena | 2560×1600 |
| Konposizioa | LCM |
| Distira | 400 |
| CR | 900:1 |
| Koloreak | 16.7M |
| Atzeko argia | WLED |
| Interfazea | MIPI |
| panel marka | SHARP |
| panel eredua | LQ101R1SX01A |
| panel mota | IGZO TFT-LCD , LCM |
| panelaren tamaina | 10.1 inch |
| ebazpena | 2560(RGB)×1600 , WQXGA |
| bistaratzeko modua | Normally Black, Transmissive |
| eremu aktiboa | 216.96×135.6 mm |
| eskema | 228×148.5×4.6 mm |
| azalera | Clear, Hard coating |
| distira | 400 cd/m² (Typ.) |
| kontraste-erlazioa | 900:1 (Typ.) |
| bistaratzeko koloreak | 16.7M (8-bit), CIE193150% |
| erantzun denbora | 25 (Typ.)(Tr+Td) |
| ikuspegi angelua | 80/80/80/80 (Min.)(CR≥10)(L/R/U/D) |
| maiztasuna | 60Hz |
| lanpara mota | 7S6PWLEDWithout Driver |
| seinale interfazea | MIPI (2 ch, 4 data lanes), 50 pins |
| sarrerako tentsioa | 3.3V (Typ.) |
| aplikazio | PAD |
| A101VW01 V0 | AUO | 10.1 | 800×480 |
| AM-1024600L3TMQW-T05H | AMPIRE | 10.1 | 1024×600 |
| B101UAN01.7 HW0A | AUO | 10.1 | 1920×1200 |
| BP101WX1-200 | BOE | 10.1 | 1280×800 |
| LP101WH4-SLA3 | LG Display | 10.1 | 1366×768 |
| LP101WX1-SLP2 | LG Display | 10.1 | 1280×800 |
| LQ101R1SX01A | SHARP | 10.1 | 2560×1600 |
| LQ101R1SX03 | SHARP | 10.1 | 2560×1600 |
| M101NWT2 R0 | IVO | 10.1 | 1024×600 |
| N101N6-L02 | Innolux | 10.1 | 1024×576 |
| B116HAN03.1 | AUO | 11.6 | 1920×1080 |
| CLAA101WJ02 | CPT | 10.1 | 1366×768 |
| HJ080NA-04L | Innolux | 8.0 | 1024×768 |
| HSD100PXN1-A00 | HannStar | 10.0 | 1024×768 |
| LP097X02-SLA3 | LG Display | 9.7 | 1024×768 |
| LTL097QL01-W01 | Samsung | 9.7 | 2048×1536 |
| LTL101AL06-W02 | Samsung | 10.1 | 1280×800 |
| LTN097XL02-A01 | Samsung | 9.7 | 1024×768 |
| N101BCG-L21 | Innolux | 10.1 | 1366×768 |
| YX101UWX002C | SEBO | 10.1 | 1280×800 |
