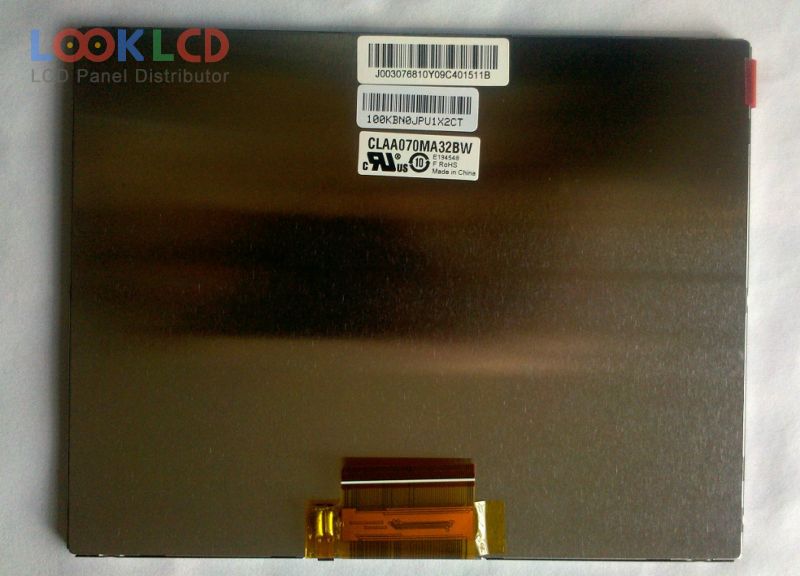

| PartZenbakia | CLAA070MA32BW |
| Marka | CPT |
| Tamaina | 7.0 |
| Aplikazio | EBK |
| Ebazpena | 800×600 |
| Konposizioa | LCM |
| Distira | 150 |
| CR | 500:1 |
| Koloreak | 16.7M |
| Atzeko argia | WLED |
| Interfazea | TTL |
| panel marka | CPT |
| panel eredua | CLAA070MA32BW |
| panel mota | a-Si TFT-LCD , LCM |
| panelaren tamaina | 7.0 inch |
| ebazpena | 800(RGB)×600 , SVGA |
| bistaratzeko modua | TN, Normally White, TMR |
| eremu aktiboa | 141.6×106.2 mm |
| eskema | 156.4×122.25×3.5 mm |
| azalera | Antiglare |
| distira | 150 cd/m² (Typ.) |
| kontraste-erlazioa | 500 : 1 (Typ.) |
| bistaratzeko koloreak | 16.7M (8-bit), CIE193120% |
| erantzun denbora | 20 (Typ.)(Tr+Td) |
| ikuspegi angelua | 50/70/70/70 (Typ.)(CR≥10)(L/R/U/D) |
| lanpara mota | 2S7PWLEDWithout Driver |
| seinale interfazea | TTL (1 ch, 8-bit), 60 pins |
| sarrerako tentsioa | 3.3/9.6/18/-6V (Typ.)(VCC/AVDD/VGH/VGL) |
| aplikazio | EBK |
| CLAA070LB01CW | CPT | 7.0 | 800×480 |
| CLAA070LC0DCW | CPT | 7.0 | 800×480 |
| CLAA070LD0DCW | CPT | 7.0 | 800×480 |
| CLAA070LFA1 CW | CPT | 7.0 | 800×480 |
| CLAA070LFB1 CW | CPT | 7.0 | 800×480 |
| CLAA070MA32BW | CPT | 7.0 | 800×600 |
| CLAA070ND28CW | CPT | 7.0 | 1024×600 |
| CLAA070ND36CW | CPT | 7.0 | 1024×600 |
| CLAA070NP01HXG | CPT | 7.0 | 1024×600 |
| CLAA070WP03 | CPT | 7.0 | 800×1280 |
| A050VVN01.0 | AUO | 5.0 | 480×800 |
| A060SE02 V7 | AUO | 6.0 | 800×600 |
| CLAA070MA32BW | CPT | 7.0 | 800×600 |
| ED060SC7 | E Ink | 6.0 | 600×800 |
| ED060SC8 | E Ink | 6.0 | 800×600 |
| ED060SCG | E Ink | 6.0 | 600×800 |
| ED060XH2 | E Ink | 6.0 | 758×1024 |
| ED097OC1 | E Ink | 9.7 | 1200×825 |
| LB071WS1-RD01 | LG Display | 7.1 | 1024×600 |
| LS060S2UD01 | SHARP | 6.0 | 600×800 |
