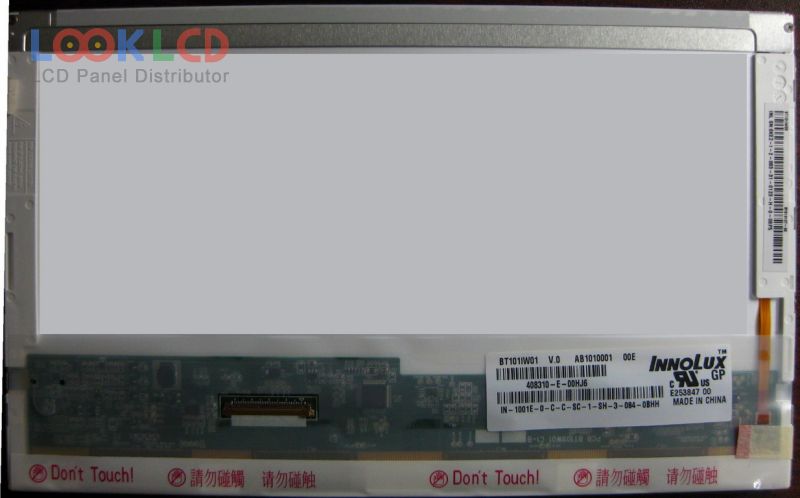

| PartZenbakia | BT101IW01 V.0 |
| Marka | Innolux |
| Tamaina | 10.1 |
| Aplikazio | NOPC |
| Ebazpena | 1024×600 |
| Konposizioa | LCM |
| Distira | 200 |
| CR | 500:1 |
| Koloreak | 262K |
| Atzeko argia | WLED |
| Interfazea | LVDS |
| panel marka | INNOLUX |
| panel eredua | BT101IW01 V.0 13 Compatible model |
| panel mota | a-Si TFT-LCD , LCM |
| panelaren tamaina | 10.1 inch |
| ebazpena | 1024(RGB)×600 , WSVGA |
| bistaratzeko modua | TN, Normally White, Transmissive |
| eremu aktiboa | 222.72×125.28 mm |
| eskema | 235×143×5.2 mm |
| forma estiloa | Wedge (PCBA Bent, Depth ≥5.2mm) |
| azalera | Glare (Haze 0%) |
| distira | 200 cd/m² (Typ.) |
| kontraste-erlazioa | 500:1 (Typ.) |
| bistaratzeko koloreak | 262K (6-bit), CIE193145% |
| erantzun denbora | 8 (Typ.)(Tr+Td) |
| ikuspegi angelua | 40/40/15/30 (Min.)(CR≥10)(L/R/U/D) |
| maiztasuna | 60Hz |
| lanpara mota | 9S3PWLEDEmbedded (LED Driver) |
| seinale interfazea | LVDS (1 ch, 6-bit), 40 pins |
| sarrerako tentsioa | 3.3V (Typ.) |
| aplikazio | NOPC |
| B101UAN01.1 | AUO | 10.1 | 1920×1200 |
| BT101IW01 V.0 | Innolux | 10.1 | 1024×600 |
| BT101IW02 V.0 | Innolux | 10.1 | 1024×600 |
| BT101IW04 V.0 | Innolux | 10.1 | 1024×600 |
| CLAA101NC05 | CPT | 10.1 | 1024×600 |
| LTL101AL06-W14 | Samsung | 10.1 | 1280×800 |
| LTN101AT03-801 | Samsung | 10.1 | 1366×768 |
| M101NWT2 R3 | IVO | 10.1 | 1024×600 |
| TM101DDHG01 | Tianma | 10.1 | 1024×600 |
| VVX10F034N00 | Panasonic | 10.1 | 1920×1200 |
| A089SW01 V0 | AUO | 8.9 | 1024×600 |
| B101AW02 V0 | AUO | 10.1 | 1024×600 |
| B116XTN02.3 HW0A | AUO | 11.6 | 1366×768 |
| B116XW01 V0 | AUO | 11.6 | 1366×768 |
| BT101IW01 V.0 | Innolux | 10.1 | 1024×600 |
| CLAA090NA02CW | CPT | 9.0 | 1024×600 |
| LP101WS1-TLA1 | LG Display | 10.1 | 1024×576 |
| LTN101NT05-T01 | Samsung | 10.1 | 1024×600 |
| N089L6-L03 | Innolux | 8.9 | 1024×600 |
| N101LGE-L41 | Innolux | 10.1 | 1024×600 |
