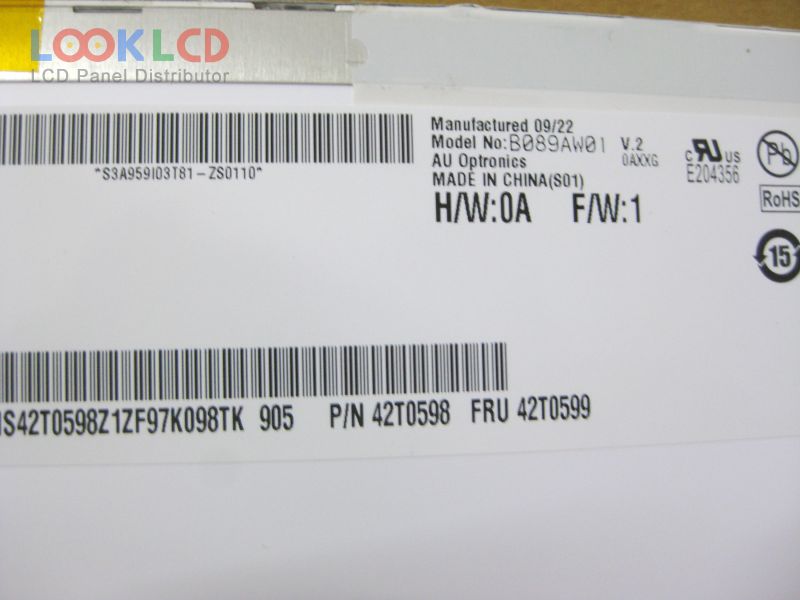

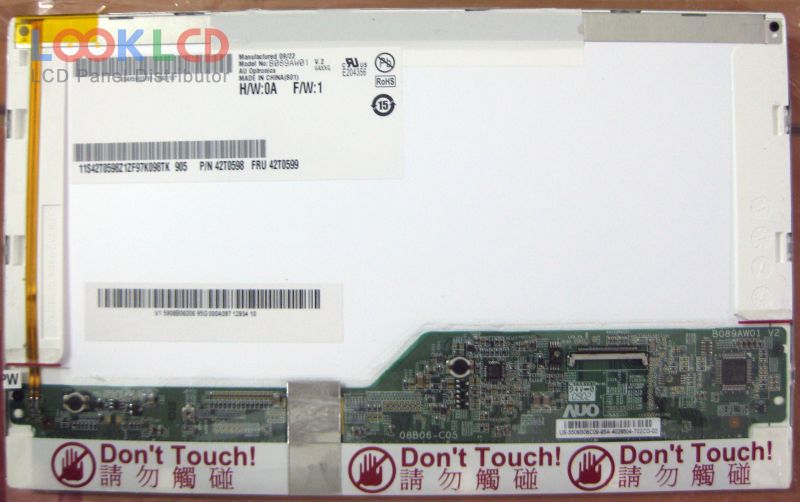

| PartZenbakia | B089AW01 V2 |
| Marka | AUO |
| Tamaina | 8.9 |
| Aplikazio | NOPC |
| Ebazpena | 1024×600 |
| Konposizioa | LCM |
| Distira | 200 |
| CR | 300:1 |
| Koloreak | 262K |
| Atzeko argia | WLED |
| Interfazea | LVDS |
| panel marka | AUO |
| panel eredua | B089AW01 V2 8 Compatible model |
| panel mota | a-Si TFT-LCD , LCM |
| panelaren tamaina | 8.9 inch |
| ebazpena | 1024(RGB)×600 , WSVGA |
| bistaratzeko modua | TN, Normally White, Transmissive |
| eremu aktiboa | 195.072×113.4 mm |
| eskema | 213.4×129.6×5.45 mm |
| azalera | Antiglare |
| distira | 200 cd/m² (Typ.) |
| kontraste-erlazioa | 300:1 (Typ.) |
| bistaratzeko koloreak | 262K (6-bit) |
| erantzun denbora | 8 (Typ.)(Tr+Td) |
| ikuspegi angelua | 45/45/15/35 (Typ.)(CR≥10)(L/R/U/D) |
| maiztasuna | 60Hz |
| lanpara mota | 3S8PWLEDEmbedded (LED Driver) |
| seinale interfazea | LVDS (1 ch, 6-bit), 40 pins |
| sarrerako tentsioa | 3.3V (Typ.) |
| aplikazio | NOPC |
