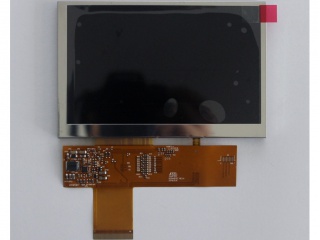

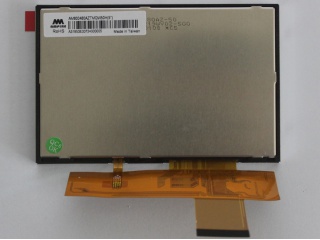

| PartZenbakia | AM-800480AZTMQW-50H |
| Marka | AMPIRE |
| Tamaina | 5.0 |
| Aplikazio | Industrial |
| Ebazpena | 800×480 |
| Konposizioa | a-Si TFT-LCD , LCM |
| Distira | |
| CR | 600:1 |
| Koloreak | 16.7M |
| Atzeko argia | 3S6P |
| Interfazea | |
| panel marka | AMPIRE |
| panelaren tamaina | 5.0" |
| ebazpena | 800(RGB)×480, WVGA, 188PPI |
| bistaratzeko eremua | 108(W)×64.8(H) mm |
| eskema tamaina | 119.7(W)×78(H) ×6.1(D) mm |
| distira | 1000 cd/m² (Typ.) |
| ikuspegi angelua | 75/75/70/60 (Typ.)(CR≥10) |
| ikuspegirik onena | - |
| bistaratzeko koloreak | 16.7M 47% NTSC |
| maiztasuna | 60Hz |
| pisua | - |
| panel eredua | AM-800480AZTMQW-50H |
| panel mota | a-Si TFT-LCD , LCM |
| pixel formatua | RGB Vertical Stripe |
| bezela irekidura | - |
| azalera | Antiglare |
| kontraste-erlazioa | 600:1 (Typ.) (TM) |
| bistaratzeko modua | TN, Normally White, Transmissive |
| erantzun denbora | 2/6 (Typ.)(Tr/Td) |
| lanpara mota | 3S6P WLED , 50K hours , Without Driver |
| pantaila taktila | Without |
| aplikazio | Industrial |
| AM-800480-050D | Other | 5.0 | 800×480 |
| AM-800480LATMQW-TN0H | AMPIRE | 5.0 | 800×480 |
| AM-800480LTMQW-00H-F | AMPIRE | 5.0 | 800×480 |
| AM-800480LTMQW-W0H | AMPIRE | 5.0 | 800×480 |
| AM-800480R3TMQW-B2H | AMPIRE | 7.0 | 800×480 |
| AM-800480RCTMQW-00H | AMPIRE | 7.0 | 800×480 |
| AM-800480RSTMQW-TA1H | AMPIRE | 7.0 | 800×480 |
| AM-800480RWTMQW-TA4H | AMPIRE | 7.0 | 800×480 |
| AM-800480STMQW-00 | AMPIRE | 7.0 | 800×480 |
| AM-800480STMQW-W0 | AMPIRE | 7.0 | 800×480 |
