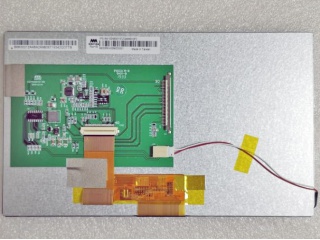

| PartZenbakia | AM-1024600Y3TZQW-A0H |
| Marka | AMPIRE |
| Tamaina | 9.0 |
| Aplikazio | Industrial |
| Ebazpena | 1024×600 |
| Konposizioa | a-Si TFT-LCD, LCM |
| Distira | |
| CR | 800:1 |
| Koloreak | 16.7M |
| Atzeko argia | WLED |
| Interfazea | LVDS |
| panel marka | AMPIRE |
| panel eredua | AM-1024600Y3TZQW-A0H |
| panelaren tamaina | 9.0" |
| panel mota | a-Si TFT-LCD, LCM |
| ebazpena | 1024(RGB)×600, WSVGA, 132PPI |
| pixel formatua | RGB Vertical Stripe |
| bistaratzeko eremua | 196.6(W)×114.1(H) mm |
| bezela irekidura | 200(W)×117.55(H) mm |
| eskema tamaina | 211.1(W)×126.5(H) ×11(D) mm |
| azalera | - |
| distira | 500 cd/m² (Typ.) |
| kontraste-erlazioa | 800:1 (Typ.) (TM) |
| ikuspegi angelua | 85/85/85/85 (Typ.)(CR≥10) |
| bistaratzeko modua | Normally Black, Transmissive |
| ikuspegirik onena | Symmetry |
| erantzun denbora | 18/17 (Typ.)(Tr/Td) |
| bistaratzeko koloreak | 16.7M |
| lanpara mota | WLED , With LED Driver |
| maiztasuna | 60Hz |
| pantaila taktila | Without |
| panelaren pisua | TBD |
| aplikazio | Industrial |
| seinale interfazea | LVDS (1 ch, 8-bit) , 30 pins Connector |
| sarrerako tentsioa | 3.3V (Typ.) |
| ingurunea | Operating Temp.: -20 ~ 70 °C ; Storage Temp.: -30 ~ 80 °C |
