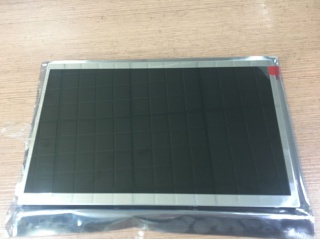

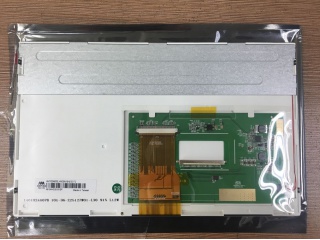

| PartZenbakia | AM-1024600LHMQW-16H |
| Marka | AMPIRE |
| Tamaina | 10.1 |
| Aplikazio | Industrial |
| Ebazpena | 1024×600 |
| Konposizioa | LCM , a-Si TFT-LCD |
| Distira | |
| CR | 500:1 |
| Koloreak | 262K |
| Atzeko argia | 6S6P |
| Interfazea | LVDS |
| fabrikatzailea | AMPIRE |
| ereduaren izena | AM-1024600LHMQW-16H |
| pantailaren tamaina | 10.1 inch |
| pantaila mota | LCM , a-Si TFT-LCD |
| pixel-zenbakia | 1024(RGB)×600 (WSVGA) 117PPI |
| antolamendua | RGB Vertical Stripe |
| eremu aktiboa (mm) | 222.72 × 125.28 (H×V) |
| eskema (mm) | 235 × 145.8 × 7.3 (H×V×D) |
| bezela eremua (mm) | 225.92 × 128.48 (H×V) |
| tratamendua | Antiglare |
| luminantzia | 250 cd/m² (Typ.) |
| kontraste-erlazioa | 500 : 1 (Typ.) (TM) |
| ikuspegi angelua | 70/70/70/50 (Typ.)(CR≥10) |
| erantzuna | 4/12 (Typ.)(Tr/Td) ms |
| ikuspegi ona | - |
| lan egiteko modua | TN, Normally White, Transmissive |
| kolore-sakonera | 262K 47% NTSC |
| atzeko argia | 6S6P WLED , 20K hours , With LED Driver |
| masa | TBD |
| erabiltzen | Industrial |
| freskatze tasa | 60Hz |
| pantaila taktila | Without |
| seinale mota | LVDS (1 ch, 6-bit) , 30 pins Connector |
| tentsio-hornidura | 3.3V (Typ.) |
| gehienez. balorazioak | Storage Temp.: -30 ~ 80 °C Operating Temp.: -20 ~ 70 °C |
