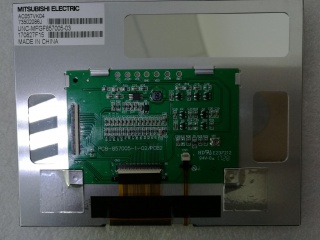

| PartZenbakia | AC057VK04 |
| Marka | Mitsubishi |
| Tamaina | 5.7 |
| Aplikazio | Industrial |
| Ebazpena | 640×480 |
| Konposizioa | a-Si TFT-LCD, LCM |
| Distira | |
| CR | 600:1 |
| Koloreak | 262K |
| Atzeko argia | WLED |
| Interfazea | Parallel |
| panel marka | Mitsubishi |
| panel eredua | AC057VK04 |
| panelaren tamaina | 5.7" |
| panel mota | a-Si TFT-LCD, LCM |
| ebazpena | 640(RGB)×480, VGA, 141PPI |
| pixel formatua | RGB Vertical Stripe |
| bistaratzeko eremua | 115.2(W)×86.4(H) mm |
| bezela irekidura | 118.1(W)×89.3(H) mm |
| eskema tamaina | 127(W)×100(H) mm |
| azalera | Antiglare, Hard coating (2H) |
| distira | 520 cd/m² (Typ.) |
| kontraste-erlazioa | 600:1 (Typ.) (TM) |
| ikuspegi angelua | 80/80/80/60 (Typ.)(CR≥10) |
| bistaratzeko modua | TN, Normally White, Transmissive |
| ikuspegirik onena | 6 o'clock |
| erantzun denbora | 4/12 (Typ.)(Tr/Td) |
| bistaratzeko koloreak | 262K 48% NTSC |
| lanpara mota | WLED , 50K hours , Without Driver |
| maiztasuna | 60Hz |
| pantaila taktila | Without |
| panelaren pisua | 90.0g |
| aplikazio | Industrial |
| seinale interfazea | Parallel RGB (1 ch, 6-bit) , 40 pins Connector |
| sarrerako tentsioa | 3.3V (Typ.) |
| ingurunea | Operating Temp.: -20 ~ 70 °C ; Storage Temp.: -30 ~ 80 °C |
| AM-640480GJTNQW-TA0H | AMPIRE | 5.7 | 640×480 |
| DLC0570FDG | Other | 5.7 | 320×240 |
| EL320.240.36 | Lumineq | 5.7 | 320×240 |
| G057AGE-T01 | Innolux | 5.7 | 320×240 |
| HTW-G320240B2 | Other | 5.7 | 320×240 |
| KCG057QV1DB-G77 | Kyocera | 5.7 | 320×240 |
| LM32019T | SHARP | 5.7 | 320×240 |
| LQ057Q3DC03 | SHARP | 5.7 | 320×240 |
| LTA057A344F | TOSHIBA | 5.7 | 320×240 |
| SP14Q001-X | KOE | 5.7 | 320×240 |
