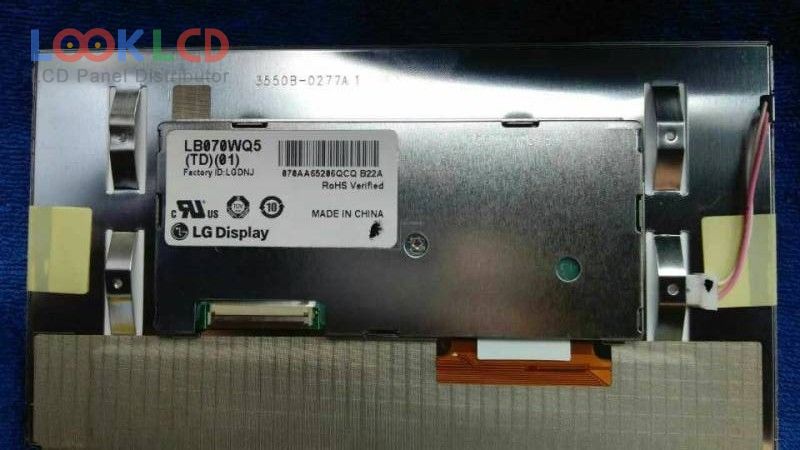

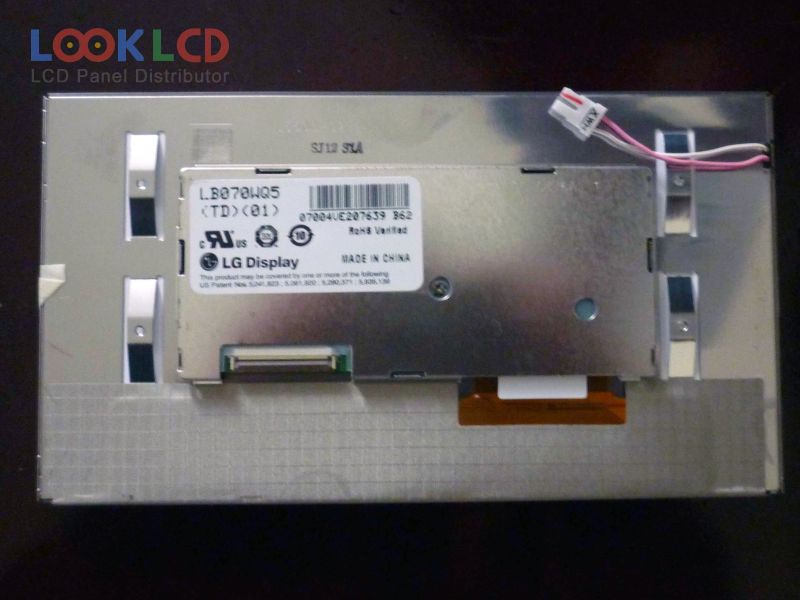

| PartZenbakia | LB070WQ5-TD01 |
| Marka | LG Display |
| Tamaina | 7.0 |
| Aplikazio | CNS |
| Ebazpena | 480×240 |
| Konposizioa | LCM |
| Distira | 500 |
| CR | 400:1 |
| Koloreak | 262K |
| Atzeko argia | CCFL |
| Interfazea | TTL |
| panel marka | LG.Philips LCD |
| panel eredua | LB070WQ5-TD01 |
| panel mota | a-Si TFT-LCD , LCM |
| panelaren tamaina | 7.0 inch |
| ebazpena | 480(RGB)×240 , WQVGA |
| bistaratzeko modua | TN, Normally White, Transmissive |
| eremu aktiboa | 155.952×82.8 mm |
| eskema | 168.8×93.5 mm |
| azalera | Antiglare |
| distira | 500 cd/m² (Typ.) |
| kontraste-erlazioa | 400:1 (Typ.) |
| bistaratzeko koloreak | 262K (6-bit), CIE193145% |
| erantzun denbora | 10/20 (Typ.)(Tr/Td) |
| ikuspegi angelua | 70/70/50/60 (Typ.)(CR≥10)(L/R/U/D) |
| lanpara mota | CCFL |
| seinale interfazea | TTL (1 ch, 6-bit), 40 pins |
| sarrerako tentsioa | 5.0V (Typ.) |
| aplikazio | CNS |
