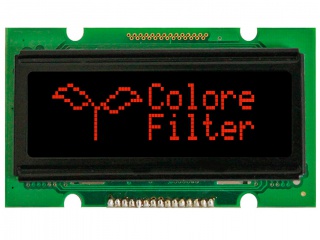

| PartZenbakia | WEG007616ABR |
| Marka | Winstar |
| Tamaina | 1.7 |
| Aplikazio | Instruments & Me |
| Ebazpena | 76×16 |
| Konposizioa | PM-OLED, OLED |
| Distira | |
| CR | |
| Koloreak | Mono(Red) |
| Atzeko argia | self |
| Interfazea | CPU/SPI |
| marka | Winstar |
| eredua | WEG007616ABR |
| diagonalaren tamaina | 1.7 inch |
| mota | PM-OLED, OLED |
| pixel formatua | 76×16 45PPI |
| konfigurazioa | Rectangle |
| eremu aktiboa | 41.7(H)×11.1(V) mm |
| eskema dim. | 55.7(H)×32(V) ×11(D) mm |
| bezela eremua | 46(H)×14.5(V) mm |
| tratamendua | - |
| ikusi norabidea | Symmetry |
| erantzun denbora | - |
| ikuspegi angelua | - |
| funtzionamendu modua | - |
| euskarria kolorea | Mono(Red) |
| argi iturria | self |
| pisua | - |
| entzat diseinatua | Instruments & Meters |
| fotograma-tasa | - |
| ukipen-panela | Without |
| d-ic xehetasuna | COB Built-in WS0010 |
| interfaze mota | CPU/SPI , 15 pins Pad |
| energia hornidura | 5.0V (Typ.) |
| A017CN01 V1 | AUO | 1.7 | 480×240 |
| A017CN01 V2 | AUO | 1.7 | 480×240 |
| NVK16BSC001G-C-0000 | Neoview Kolon | 1.7 | 80×168 |
| TFT-GG1P0553UTSW-W-E | Other | 1.7 | 176×220 |
| UG-6028GDEBF02 | WiseChip | 1.7 | 160×128 |
