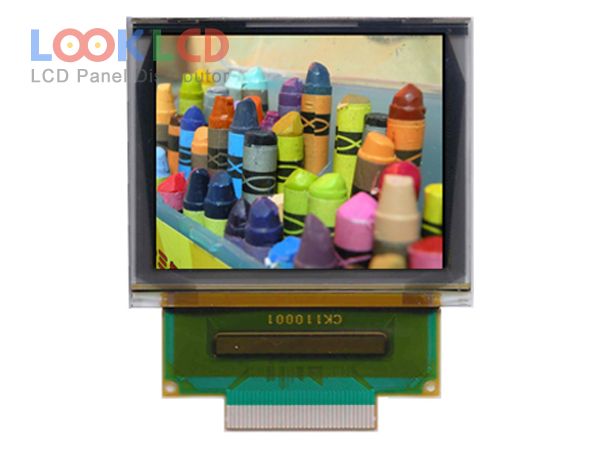

| PartZenbakia | UG-6028GDEBF02 |
| Marka | WiseChip |
| Tamaina | 1.7 |
| Aplikazio | IA |
| Ebazpena | 160×128 |
| Konposizioa | OLED |
| Distira | 75 |
| CR | 2000:1 |
| Koloreak | 262K |
| Atzeko argia | self |
| Interfazea | CPU/RGB/SPI |
| panel marka | WiseChip |
| panel eredua | UG-6028GDEBF02 |
| panel mota | PM-OLED , OLED |
| panelaren tamaina | 1.7 inch |
| ebazpena | 160(RGB)×128 |
| eremu aktiboa | 33.575×26.864 mm |
| eskema | 39.9×34×1.7 mm |
| azalera | |
| distira | 75 cd/m² (Typ.) |
| kontraste-erlazioa | 2000 : 1 (Typ.) |
| bistaratzeko koloreak | 262K (6-bit) |
| ikuspegi angelua | 80/80/80/80 (Min.)(L/R/U/D) |
| gidariaren ic | COF Built-in SEPS525 |
| seinale interfazea | 8/9-bit 8080 parallel, 6-bit RGB, 4-wire SPI, 35 pins |
| sarrerako tentsioa | 2.8/2.8/14.0V (VDD/VDDIO/VDDH) |
| rohs: | |
| aplikazio | IA |
