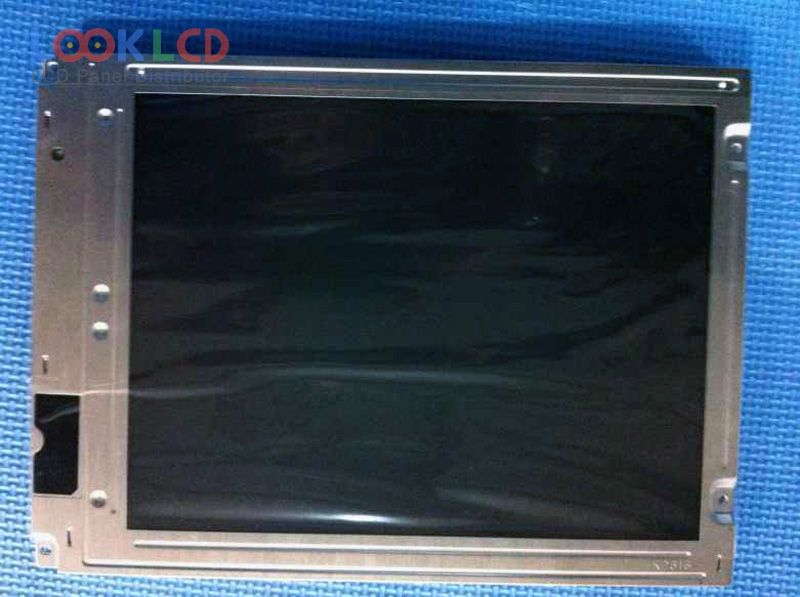

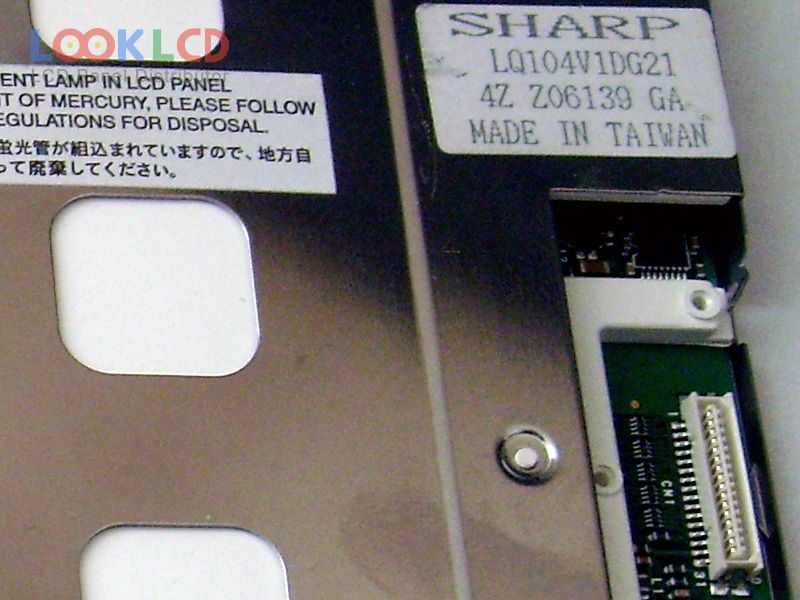

| PartZenbakia | LQ104V1DG21 |
| Marka | SHARP |
| Tamaina | 10.4 |
| Aplikazio | IA |
| Ebazpena | 640×480 |
| Konposizioa | LCM |
| Distira | 350 |
| CR | 300:1 |
| Koloreak | 262K |
| Atzeko argia | CCFL |
| Interfazea | TTL |
| panel marka | SHARP |
| panel eredua | LQ104V1DG21 3 Compatible model |
| panel mota | a-Si TFT-LCD , LCM |
| panelaren tamaina | 10.4 inch |
| ebazpena | 640(RGB)×480 , VGA |
| bistaratzeko modua | TN, Normally White, Transmissive |
| eremu aktiboa | 211.2×158.4 mm |
| eskema | 265×195×11.5 mm |
| azalera | Antiglare, Hard coating (3H), Antireflection |
| distira | 350 cd/m² (Typ.) |
| kontraste-erlazioa | 300:1 (Typ.) |
| bistaratzeko koloreak | 262K (6-bit) |
| erantzun denbora | 20/40 (Typ.)(Tr/Td) |
| ikuspegi angelua | 70/70/40/70 (Typ.)(CR≥10)(L/R/U/D) |
| maiztasuna | 60Hz |
| lanpara mota | 2 pcsCCFLWithout Driver |
| seinale interfazea | Parallel RGB (1 ch, 6-bit), 31 pins |
| sarrerako tentsioa | 3.3/5.0V (Typ.)(VCC) |
| aplikazio | IA |
| LQ104S1DG2A | SHARP | 10.4 | 800×600 |
| LQ104S1LG32 | SHARP | 10.4 | 800×600 |
| LQ104V1DG21 | SHARP | 10.4 | 640×480 |
| LQ104V1DG33 | SHARP | 10.4 | 640×480 |
| LQ104V1DG59 | SHARP | 10.4 | 640×480 |
| LQ104V1DG62 | SHARP | 10.4 | 640×480 |
| LQ104V1DG71 | SHARP | 10.4 | 640×480 |
| LQ104V1DG72 | SHARP | 10.4 | 640×480 |
| LQ104V1DG83 | SHARP | 10.4 | 640×480 |
| LQ104V1DW02 | SHARP | 10.4 | 640×480 |
| AA084VC05 | Mitsubishi | 8.4 | 640×480 |
| AM-1280800N1TZQW-T06H | AMPIRE | 10.1 | 1280×800 |
| DLC0560AIG-3 | Other | 5.6 | 640×480 |
| G084SN03 V2 | AUO | 8.4 | 800×600 |
| G185BGE-L01 | Innolux | 18.5 | 1366×768 |
| G321EV5R000 | SII | 4.7 | 320×240 |
| KCB6448BSTT-X1 | Kyocera | 10.4 | 640×480 |
| LTM121SI-T01 | Samsung | 12.1 | 800×600 |
| NL6448AC33-29 | NLT | 10.4 | 640×480 |
| TCG121SVLQAPNN-AN20 | Kyocera | 12.1 | 800×600 |
