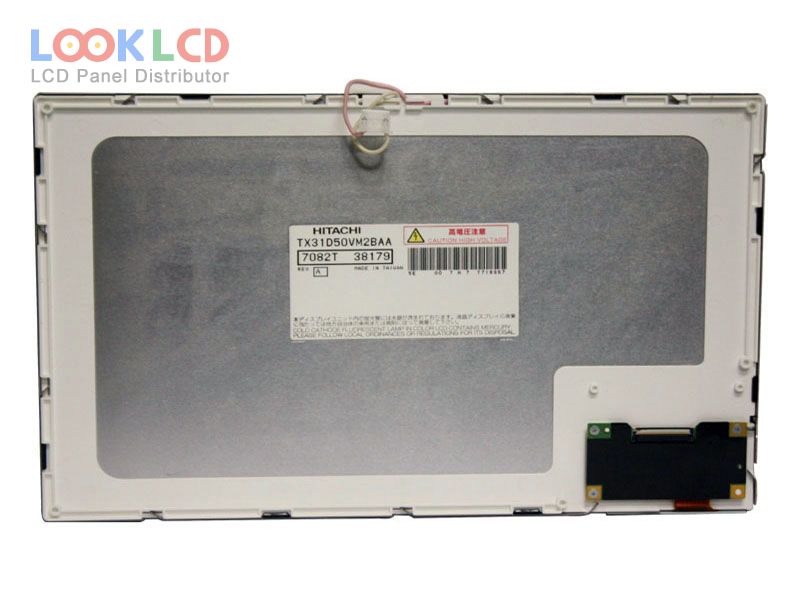

| PartZenbakia | TX31D50VM2BAA |
| Marka | KOE |
| Tamaina | 12.0 |
| Aplikazio | DPF |
| Ebazpena | 800×480 |
| Konposizioa | LCM |
| Distira | 350 |
| CR | 350:1 |
| Koloreak | 262K |
| Atzeko argia | CCFL |
| Interfazea | TTL |
| panel marka | HITACHI |
| panel eredua | TX31D50VM2BAA |
| panel mota | a-Si TFT-LCD , LCM |
| panelaren tamaina | 12.0 inch |
| ebazpena | 800(RGB)×480 , WVGA |
| bistaratzeko modua | TN, Normally White, Transmissive |
| eremu aktiboa | 261.6×156.96 mm |
| eskema | 283×173.8 mm |
| azalera | |
| distira | 350 cd/m² (Typ.) |
| kontraste-erlazioa | 350:1 (Typ.) |
| bistaratzeko koloreak | 262K (6-bit), CIE193170% |
| erantzun denbora | |
| ikuspegi angelua | 60/60/50/60 (Typ.)(CR≥10)(L/R/U/D) |
| lanpara mota | 1 pcsCCFL |
| seinale interfazea | CMOS (1 ch, 6-bit) |
| sarrerako tentsioa | 3.3V (Typ.) |
| rohs: | |
| aplikazio | DPF |
