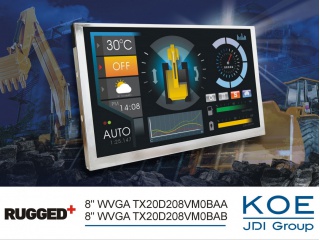

| PartZenbakia | TX20D208VM0BAA |
| Marka | HITACHI |
| Tamaina | 8.0 |
| Aplikazio | Industrial Outdoor H |
| Ebazpena | 800×480 |
| Konposizioa | a-Si TFT-LCD, LCM |
| Distira | |
| CR | 1000:1 |
| Koloreak | 16.7M |
| Atzeko argia | WLED |
| Interfazea | LVDS |
| panel marka | HITACHI |
| panel eredua | TX20D208VM0BAA |
| panelaren tamaina | 8.0" |
| panel mota | a-Si TFT-LCD, LCM |
| ebazpena | 800(RGB)×480, WVGA, 116PPI |
| pixel formatua | RGB Vertical Stripe |
| bistaratzeko eremua | 174(W)×104.4(H) mm |
| bezela irekidura | 177.4(W)×107.8(H) mm |
| eskema tamaina | 190.8(W)×120.5(H) ×16.2(D) mm |
| azalera | - |
| distira | 1200 cd/m² (Typ.) |
| kontraste-erlazioa | 1000:1 (Typ.) (TM) |
| ikuspegi angelua | 85/85/85/85 (Typ.)(CR≥10) |
| bistaratzeko modua | IPS, Normally Black, Transmissive |
| ikuspegirik onena | Symmetry |
| erantzun denbora | 30 (Max.)(Tr+Td) |
| bistaratzeko koloreak | 16.7M 70% NTSC |
| lanpara mota | WLED , 100K hours , With LED Driver |
| maiztasuna | 60Hz |
| pantaila taktila | Without |
| panelaren pisua | 275g (Typ.) |
| aplikazio | Industrial Outdoor High Brightness Automotive Display |
| seinale interfazea | LVDS (1 ch, 8-bit) , 20 pins Connector |
| sarrerako tentsioa | 3.3V (Typ.) |
| ingurunea | Operating Temp.: -40 ~ 85 °C ; Storage Temp.: -40 ~ 90 °C |
| AT080TN42 | Innolux | 8.0 | 800×600 |
| B080EAN02.0 | AUO | 8.0 | 800×1280 |
| B080UAN01.2 | AUO | 8.0 | 1200×1920 |
| CLAA080LJ01CW | CPT | 8.0 | 800×480 |
| CLAA080WQ05 | CPT | 8.0 | 800×1280 |
| EJ080NA-04C | Innolux | 8.0 | 1024×768 |
| EJ080NA-05A | Innolux | 8.0 | 800×600 |
| LSL080AL02-B01 | Samsung | 8.0 | 800×1280 |
| N080ICE-GB0 Rev.C1 | Innolux | 8.0 | 800×1280 |
| PW080XU1 | E Ink | 8.0 | 480×220 |
