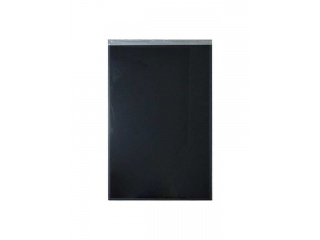

| PartZenbakia | TV080WUM-NL1 |
| Marka | BOE |
| Tamaina | 8.0 |
| Aplikazio | Pad & Tablet |
| Ebazpena | 1200×1920 |
| Konposizioa | LCM , a-Si TFT-LCD |
| Distira | |
| CR | 1000:1 |
| Koloreak | 16.7M |
| Atzeko argia | 8S3P |
| Interfazea | MIPI |
| fabrikatzailea | BOE |
| ereduaren izena | TV080WUM-NL1 |
| pantailaren tamaina | 8.0 inch |
| pantaila mota | LCM , a-Si TFT-LCD |
| pixel-zenbakia | 1200(RGB)×1920 (WUXGA) 283PPI |
| antolamendua | RGB Vertical Stripe |
| eremu aktiboa (mm) | 107.64 × 172.224 (H×V) |
| eskema (mm) | 114.6 × 183.75 × 3.75 (H×V×D) |
| bezela eremua (mm) | - |
| tratamendua | Hard coating |
| luminantzia | 400 cd/m² (Typ.) |
| kontraste-erlazioa | 1000 : 1 (Typ.) (TM) |
| ikuspegi angelua | 80/80/80/80 (Typ.)(CR≥10) |
| erantzuna | 25 (Typ.)(Tr+Td) ms |
| ikuspegi ona | Symmetry |
| lan egiteko modua | ADS, Normally Black, Transmissive |
| kolore-sakonera | 16.7M 63% NTSC |
| atzeko argia | 8S3P WLED , 15K hours , No Driver |
| masa | 85.0g (Max.) |
| erabiltzen | Pad & Tablet |
| freskatze tasa | 60Hz |
| pantaila taktila | Without |
| seinale mota | MIPI (4 data lanes) , 45 pins Connector |
| tentsio-hornidura | 3.3V (Typ.) |
| gehienez. balorazioak | Storage Temp.: -30 ~ 70 °C Operating Temp.: -20 ~ 60 °C |
